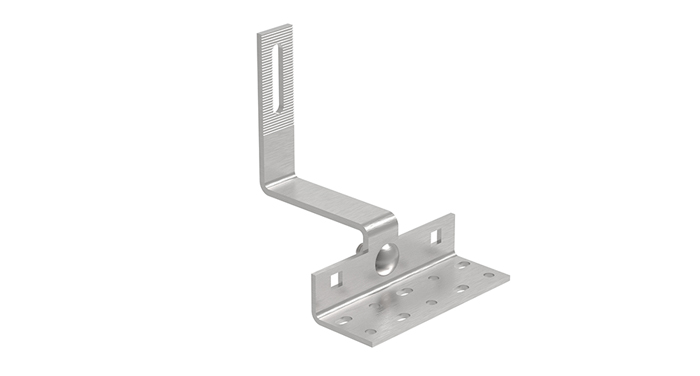

WOCHN 19# Tile roof hook is for solar installation on residential and commercial tiled roofs. It’s suitable for all tile roof, like pantiles roofing, slate roofing, plain tiles roofing and concrete roof tile. The hook is made by SS304/430 highly anti-rust and big wind and snow load ability. Two fix in rail way to choose: T bolt or side rail fix adapter. It's simple design to achieve quickest installation. Portrait and Landscape installation both workable.

Features

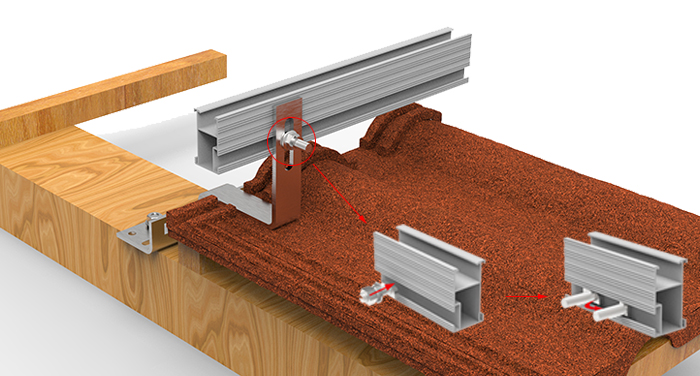

T Bolt Way

Use T bolt to fix in Rail,just rotated and tighten the T bolt

For portrait installation

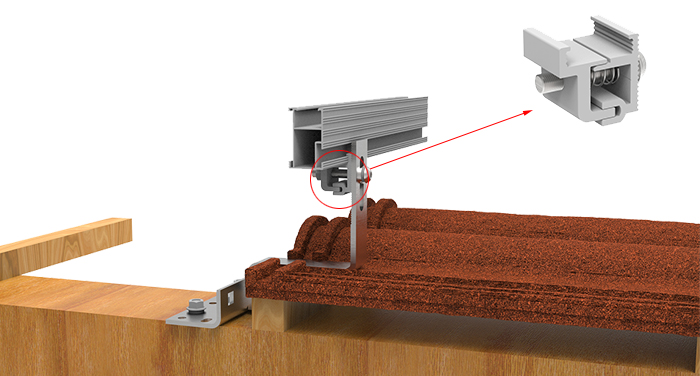

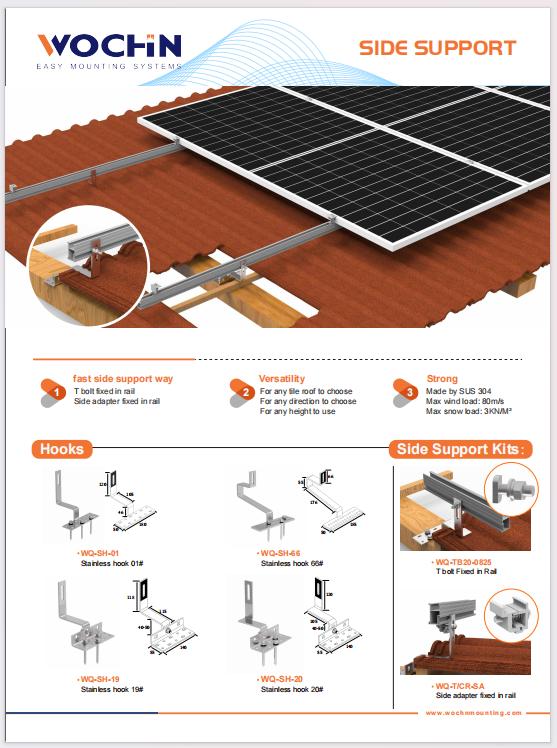

Fast Side Support Way

Use side rail fix adapter to fix,just tighten the screws of the adapter from the side

For portrait installation

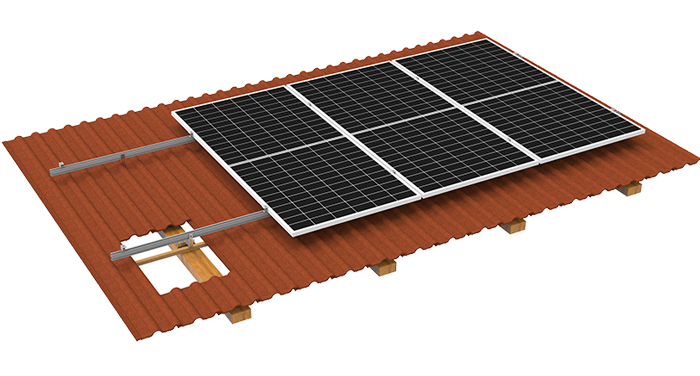

Universality

Simple installation with slotted connections, adjustable hook locations, different width bases and multiple hole patterns

For any tile roof to choose

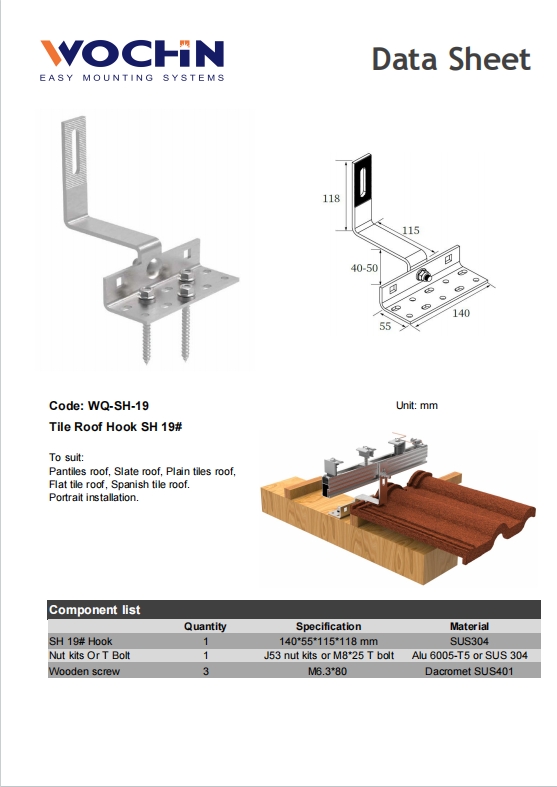

Components

Part Name	Quantity	Specification	Material
19# hook	1	1405540-50 mm	Stainless steel SUS304/430
Self driling screw	3	M6.3*80mm	Stainless steel
T Bolt(Option)	1	WOCHN T Bolt M8*25	Anodized Aluminium 6005-T5
Rail Fix Adapter(Option)	1	/	Anodized Aluminium 6005-T5

Technical Data

unit:mm

Product name	Tile roof hook 19#Mounting System
Application	Tile roof
Inclination	Any roof inclination
Material	Stainless SUS304/430
Finish	Nature
PV module	Framed or Unfreamed
Module size	Small and Big modules
Module orientation	Portrait and Landscape
Design wind loading	Up to 60m/s
Design snow loading	Up to 1 metre
Roof height	Up to 20 metre
Design Standard	EN1991, AS1170,UL1703,JIS C 8955:2011,CE,TUV
