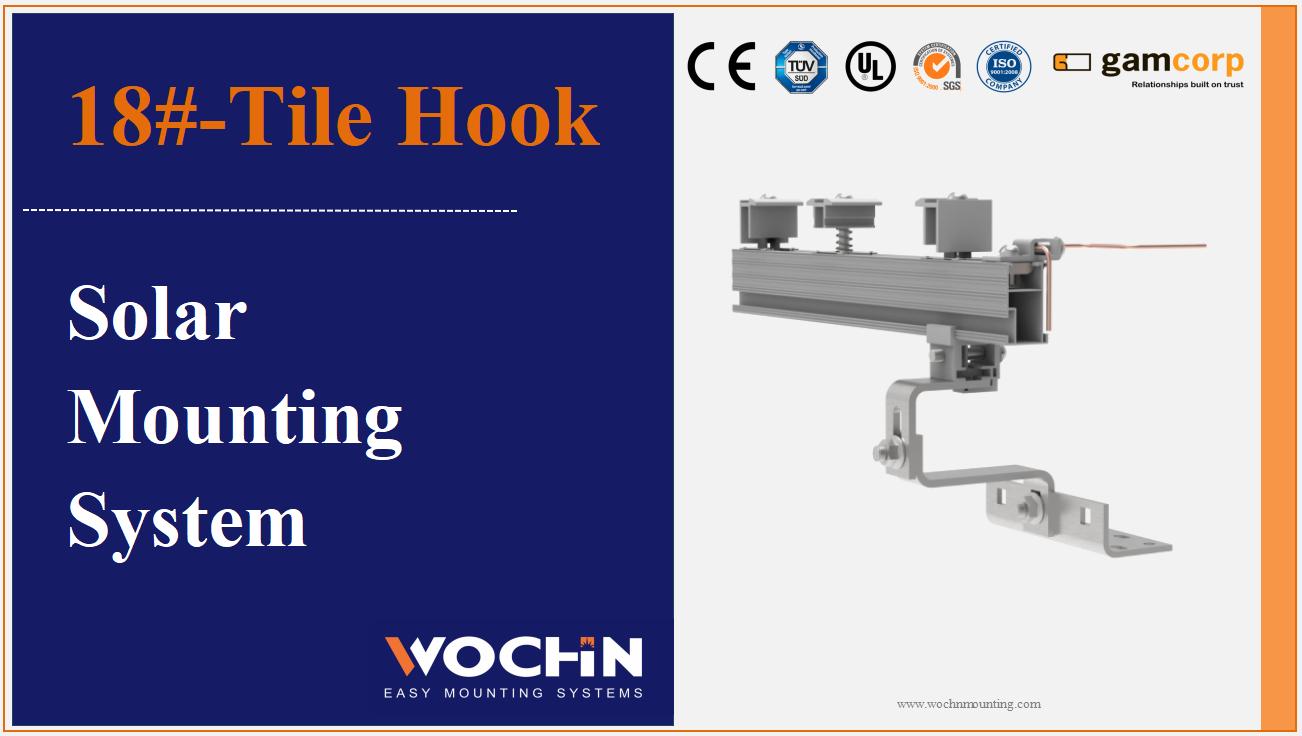

18#Tile roof hook which can adjust height on the top and bottom for solar installation on tiled roofs.Alltiled

Features Components Technical Data Videos Downloads Projects

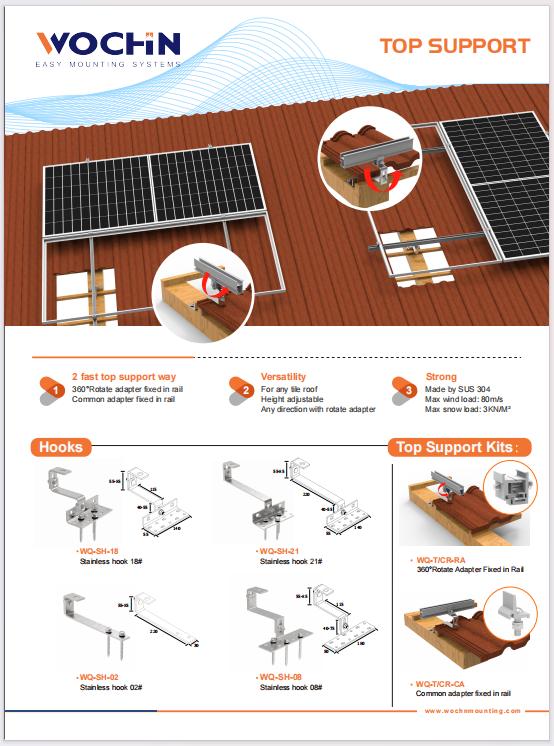

WOCHN 18# Tile roof hook is a hook which can adjust height on the top and bottom for solar installation on residential and commercial tiled roofs. It’s suitable for all tile roof, like pantiles roofing, slate roofing, plain tiles roofing and concrete roof tile. The hook is made by SS304/430 highly anti-rust and big wind and snow load ability. Two fix in rail way to choose: common rail fix adapter or rotate rail fix adapter. It's simple design to achieve quickest installation. One hook can achieve landscape and portrait installation both or any direction.

Features

Rotate Rail Way

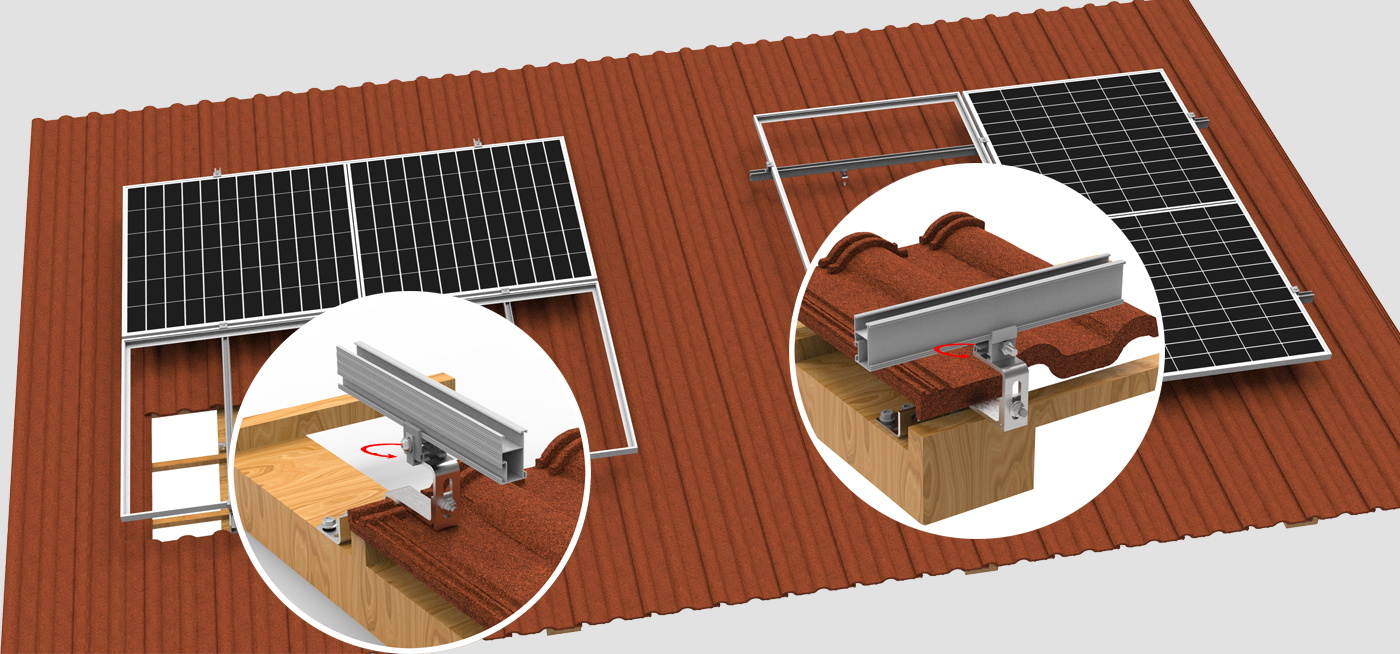

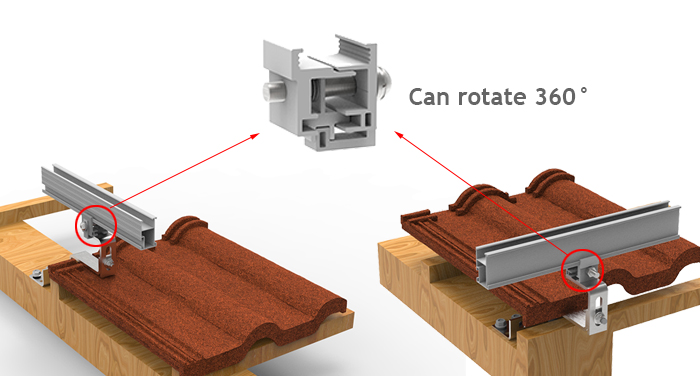

Fix the rail on hook top, use rotate rail fix adapter to fix can achieve rail rotate 360°

Height adjustable: 55-85mm on the hook top,40-55mm on the hook bottom

Installation for any direction with rotate adapter

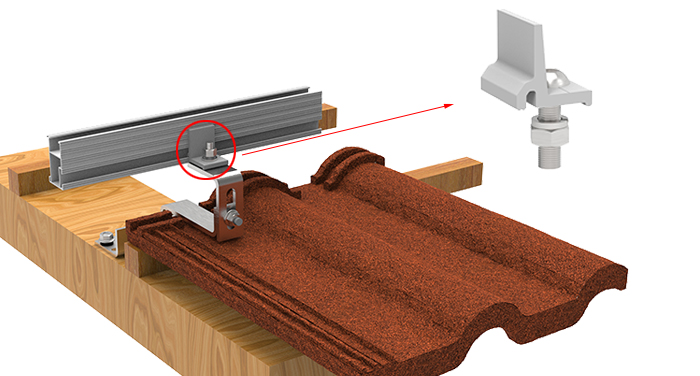

Top Install Way

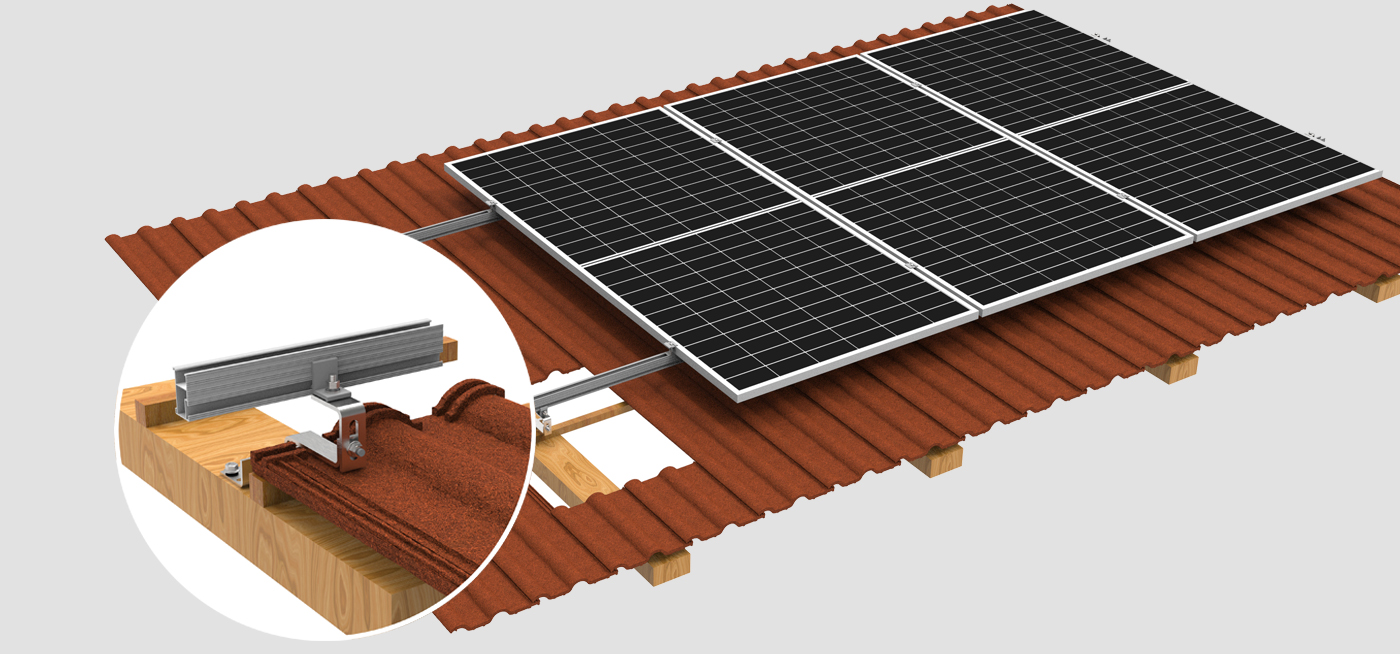

Fix the rail on hook top, use common rail fix adapter to fix

For portrait installation

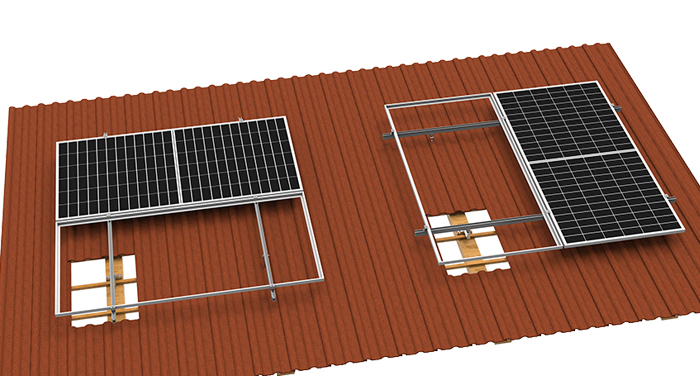

Universality

Simple installation with slotted connections, adjustable hook locations, different width bases and multiple hole patterns

For any tile roof to choose

For any direction to choose

For any height to use

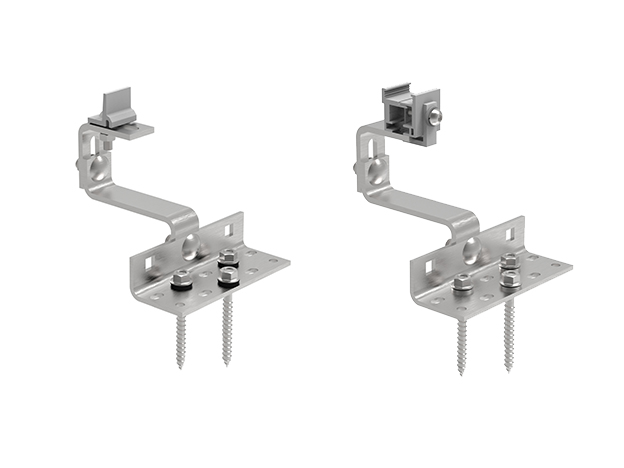

Components

Part Name	Quantity	Specification	Material

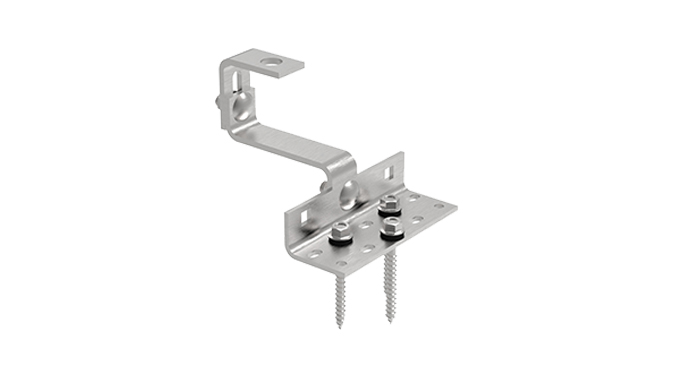

18# hook	1	1405540-55 mm	Stainless steel SUS304/430
Self driling screw	3	M6.3*80mm	Stainless steel
Common Rail Fix Adapter(Option)	1	/	Anodized Aluminium 6005-T5
Rotate Rail Fix Adapter(Option)	1	/	Anodized Aluminium 6005-T5

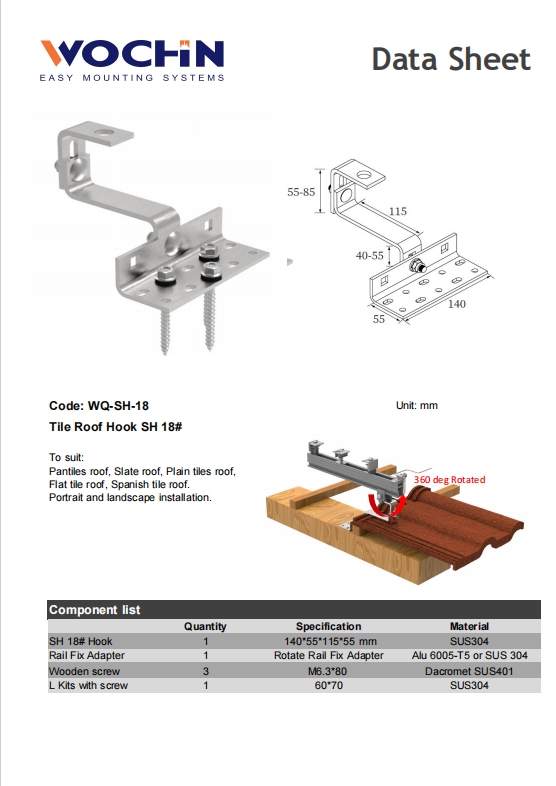

Technical Data

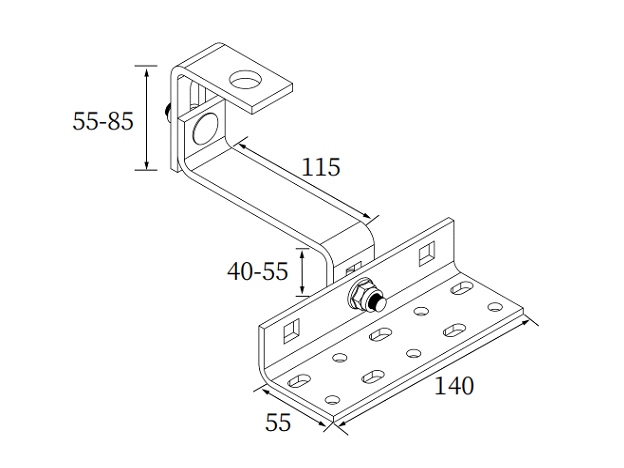

unit:mm

Product name	Tile roof hook 18#Mounting System
Application	Tile roof
Inclination	Any roof inclination
Material	Stainless SUS304/430
Finish	Nature
PV module	Framed or Unfreamed
Module size	Small and Big modules
Module orientation	Portrait and Landscape or any direction
Design wind loading	Up to 60m/s
Design snow loading	Up to 1 metre
Roof height	Up to 20 metre
Design Standard	EN1991, AS1170,UL1703,JIS C 8955:2011,CE,TUV
