07#Tile roof hook which can adjust height on the top and bottom for solar installation on tile roof,madeby Alu

Features Components Technical Data Videos Downloads Projects

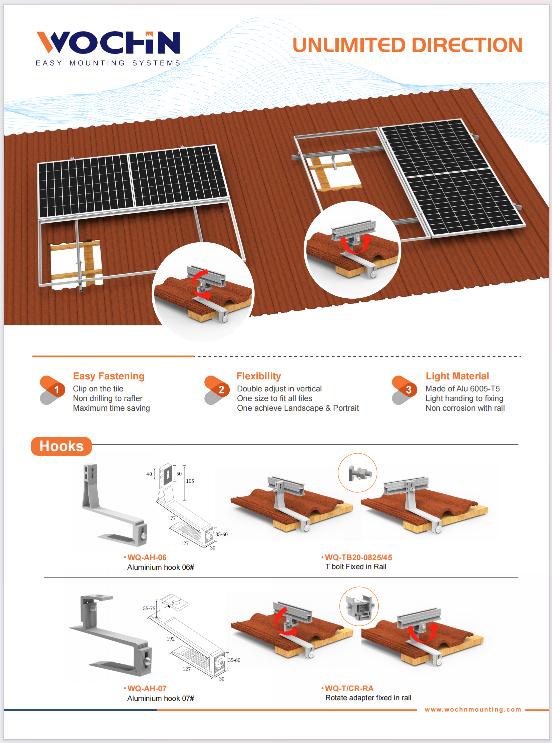

WOCHN 07# Tile roof hook is a hook which can adjust height on the top and bottom for solar installation on residential and commercial tiled roofs. It’s suitable for all tile roof, like pantiles roofing, slate roofing, plain tiles roofing and concrete roof tile. The hook is made by aluminium highly anti-rust and big wind and snow load ability. Two fix in rail way to choose: common rail fix adapter or rotate rail fix adapter. To Clip wooden substructure and tile together, no need drill hole as usual. It's simple design to achieve quickest installation. One hook can achieve landscape and portrait installation both or any direction.

Features

Rotate Rail Way

To clip wooden substructure and tile together, no need drill hole as usual

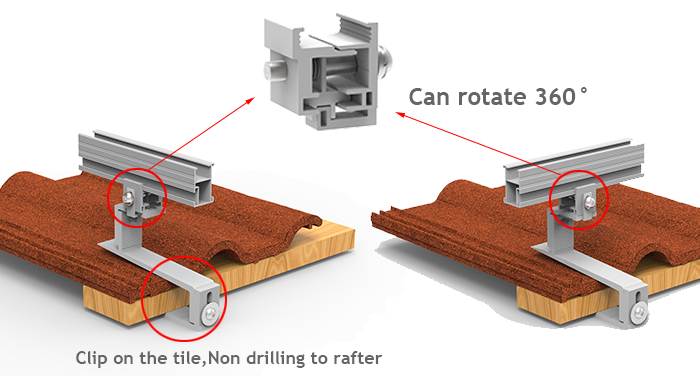

Fix the rail on hook top, use rotate rail fix adapter to fix can achieve rail rotate 360°

Installation for any direction with rotate adapter

Top Install Way

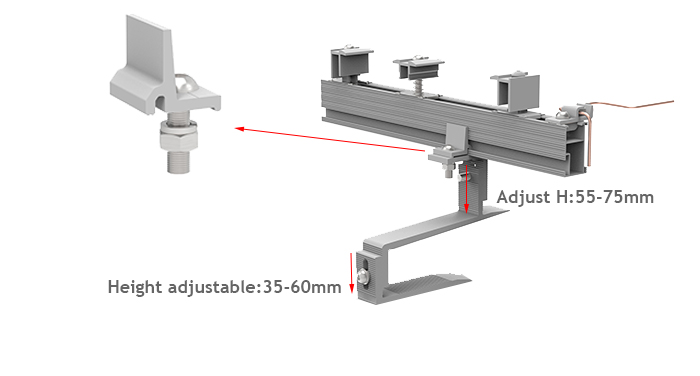

Fix the rail on hook top, use common rail fix adapter to fix

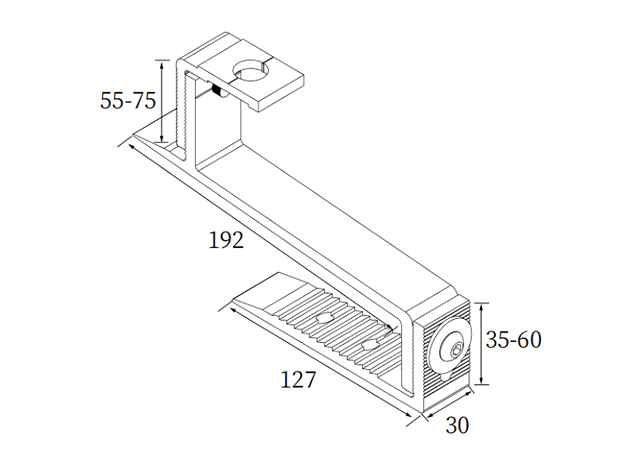

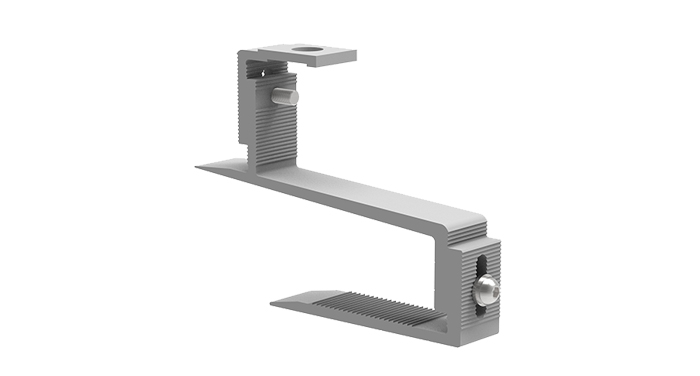

Height adjustable: 55-75mm on the hook top,35-60mm on the hook bottom

Made by aluminium , highly anti-rust

Universality

For any tile roof to choose

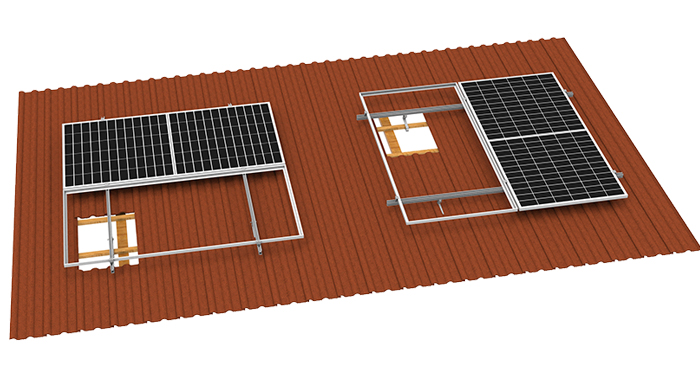

For any direction to choose

For any height to use

Components

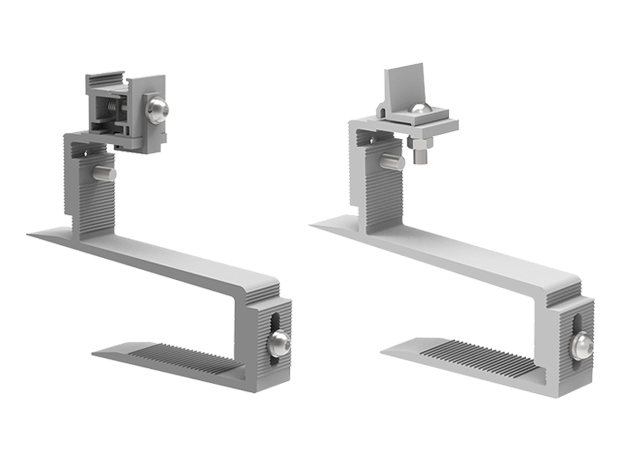

Part Name	Quantity	Specification	Material
07# hook	1	1273035-60 mm	Anodized Aluminium 6005-T5
Common Rail Fix Adapter(Option)	1	/	Anodized Aluminium 6005-T5
Rotate Rail Fix Adapter(Option)	1	/	Anodized Aluminium 6005-T5

Technical Data

unit:mm

Product name	Tile roof hook 07#Mounting System
Application	Tile roof
Inclination	Any roof inclination
Material	Anodized Aluminium 6005-T5
Finish	Nature
PV module	Framed or Unfreamed
Module size	Small and Big modules
Module orientation	Portrait and Landscape
Design wind loading	Up to 60m/s
Design snow loading	Up to 1 metre
Roof height	Up to 20 metre
Design Standard	EN1991, AS1170,UL1703,JIS C 8955:2011,CE,TUV
