06#Tile roof hook which can adjust height on the bottom for solar installation on tiled roof.made by aluminiu

Features Components Technical Data Videos Downloads Projects

WOCHN 06# Tile roof hook is a hook which can adjust height on the bottom for solar installation on residential and commercial tiled roofs. It’s suitable for all tile roof, like pantiles roofing, slate roofing, plain tiles roofing and concrete roof tile. The hook is made by aluminium highly anti-rust and big wind and snow load ability. Two fix in rail way to choose: change the direction of T bolt to achieve landscape and portrait installation.To Clip wooden substructure and tile together, no need drill hole as usual. It's simple design to achieve quickest installation.

Features

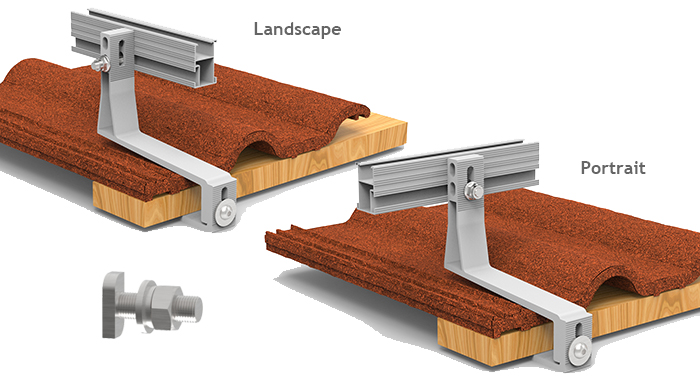

T Bolt Install Way

Use T bolt to fix in Rail, just rotated and tighten the T bolt

Only change the direction of T bolt fix in hook side to achieve both landscape and portrait installation

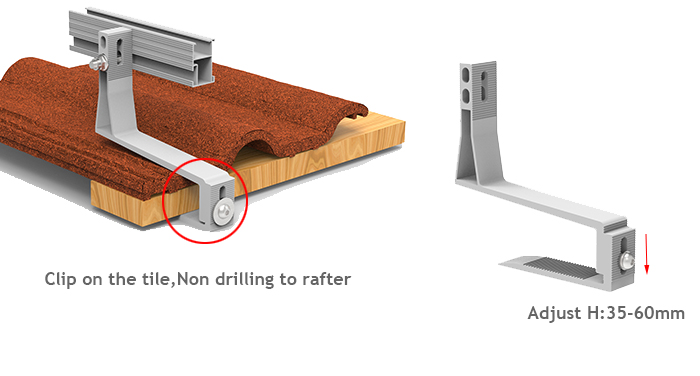

Clip on Tile

To clip wooden substructure and tile together, no need drill hole as usual

Height adjustable: 35-60mm on the hook bottom

Made by aluminium , highly anti-rust

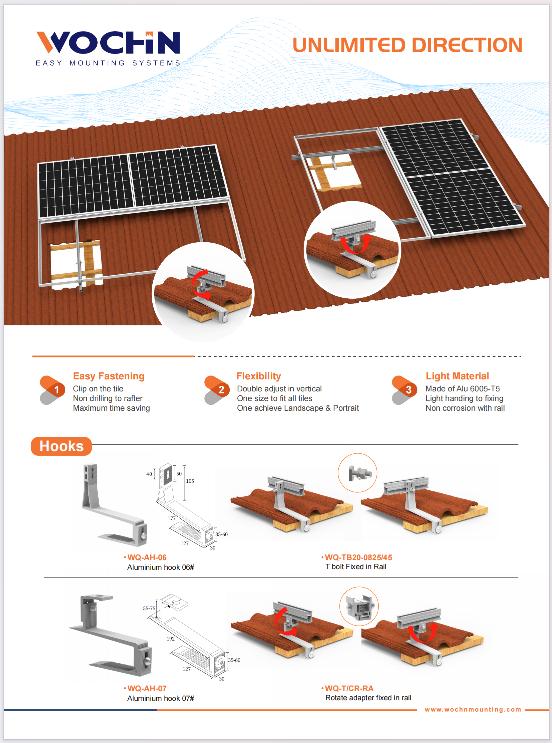

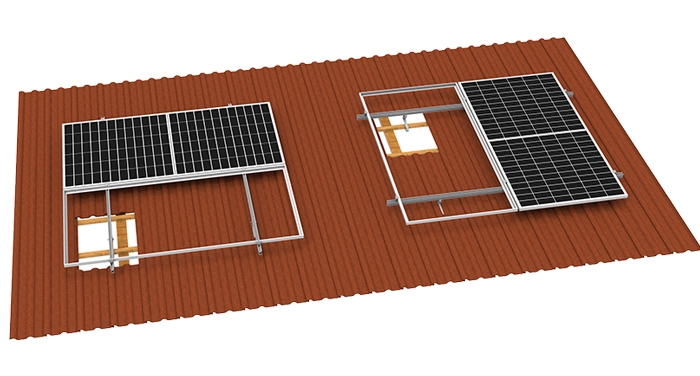

Universality

For any tile roof to choose

For any direction to choose

For any height to use

Simple installation with slotted connections, adjustable hook locations, different width bases and multiple hole patterns

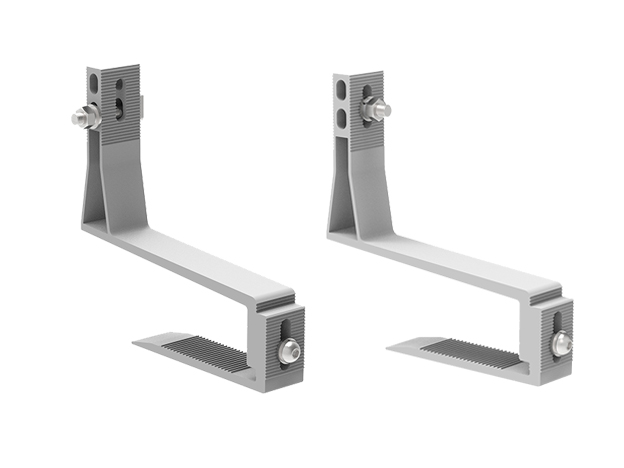

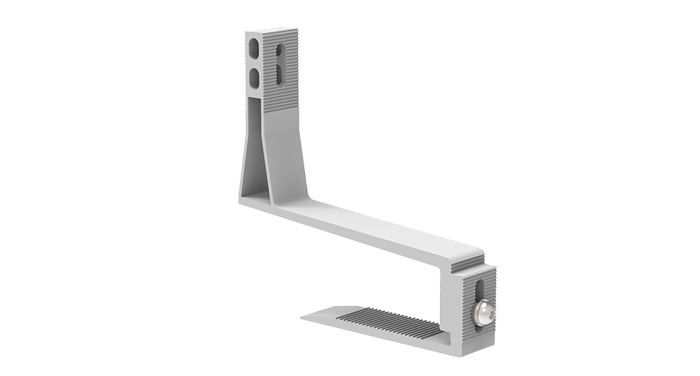

Components

Part Name	Quantity	Specification	Material
06# hook	1	1273035-60 mm	Anodized Aluminium 6005-T5
T Bolt	1	WOCHN T Bolt M8*25	Anodized Aluminium 6005-T5

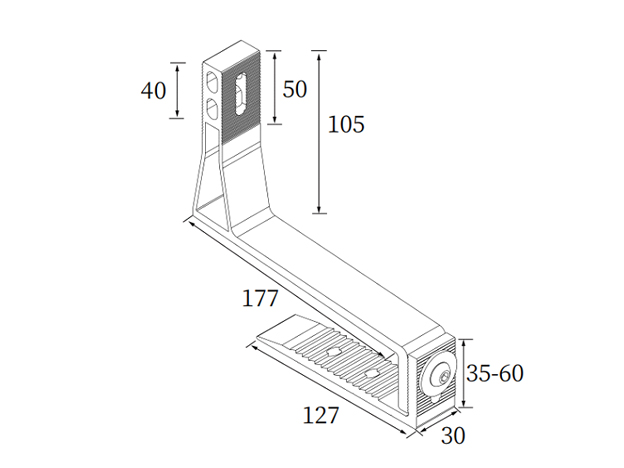

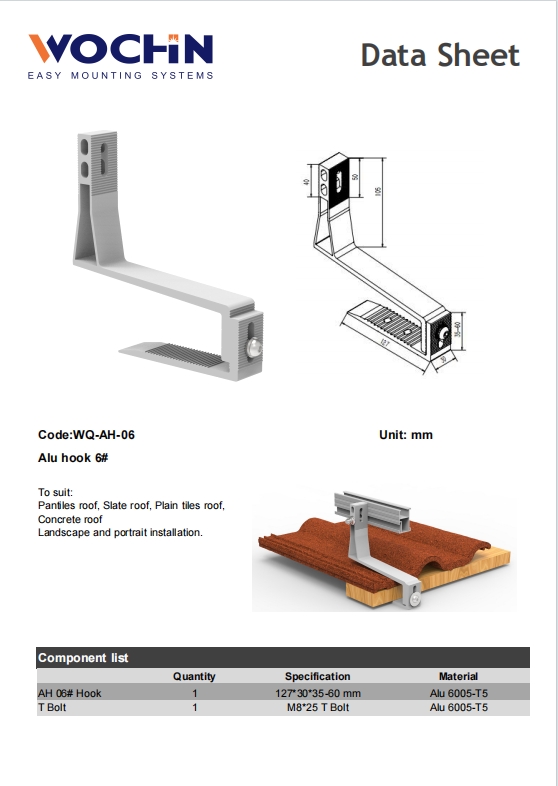

Technical Data

unit:mm

Product name	Tile roof hook 06#Mounting System
Application	Tile roof
Inclination	Any roof inclination
Material	Anodized Aluminium 6005-T5
Finish	Nature
PV module	Framed or Unfreamed
Module size	Small and Big modules
Module orientation	Portrait and Landscape
Design wind loading	Up to 60m/s
Design snow loading	Up to 1 metre
Roof height	Up to 20 metre
Design Standard	EN1991, AS1170,UL1703,JIS C 8955:2011,CE,TUV
