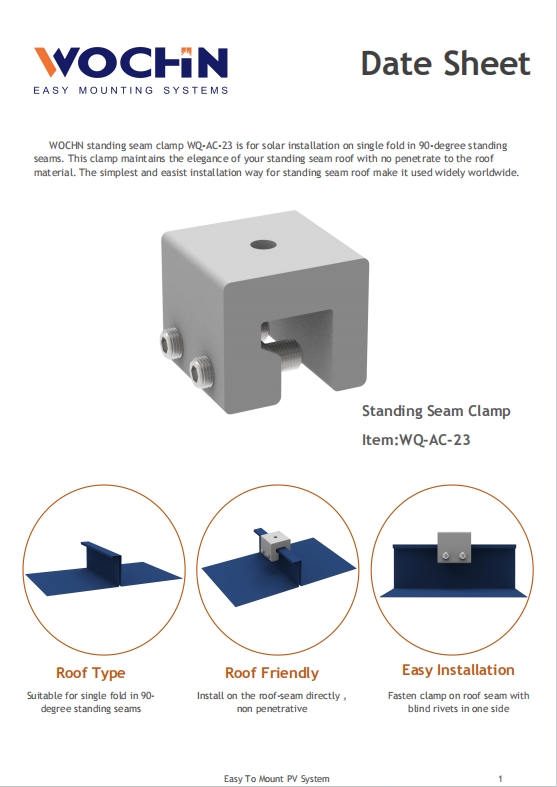

WOCHN standing seam clamp AC-23 is rail-based clamp for solar installation on standing seam metal roof. It is specifically made for single fold in 90-degree standing seam metal roof. This clamp maintains the beautiful appearance of your standing seam roof with no harm to the roof material. No harm equals no penetrative that means weatherproof for the roof to ensure the rooftop longer lifespan And also ensure that must be mounted to the roof with permanence and durability. Pre-assembled two set-screw for quick mounting. Installation is as simple as placing the clamp on the seam and tightening the round-point setscrews to the specified tension to reach maximum holding strength. Rigorous load testing to ensure the longer lifespan and reliable.

Features

Universality

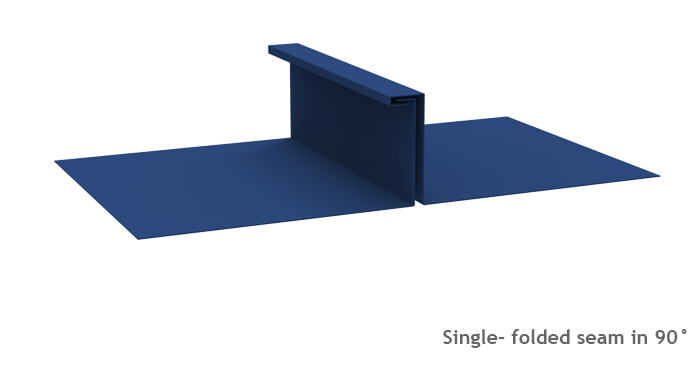

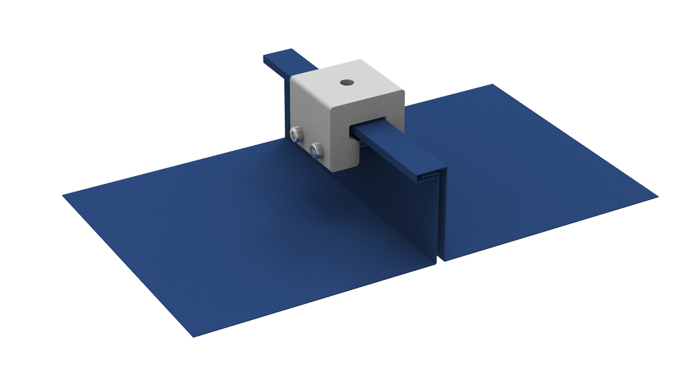

Suitable for single fold in 90-degree standing seam metal roof

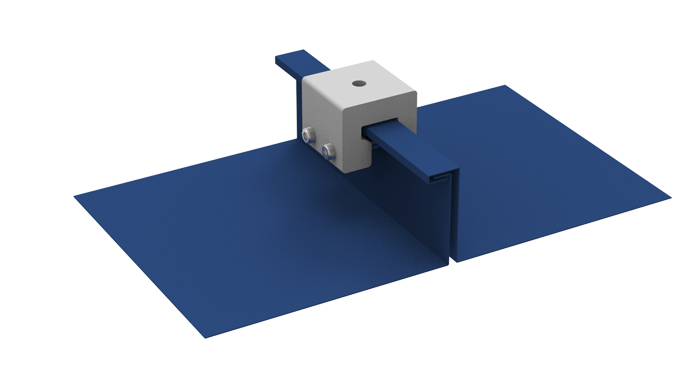

Non-penetrative, robust and waterproof

Installation is as simple as placing the clamp on the seam and tightening the round-point setscrews to the specified tension to reach maximum holding strength

No penetrative means weatherproof for the roof to ensure the rooftop longer lifespan

Flexibility

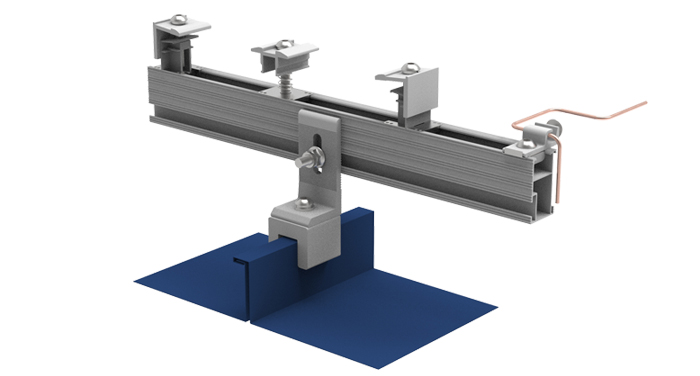

Easy compatible with WOCHN L feet solar mounting system to make standing seam clamp mount system more strong

Longer lifespan and reliable

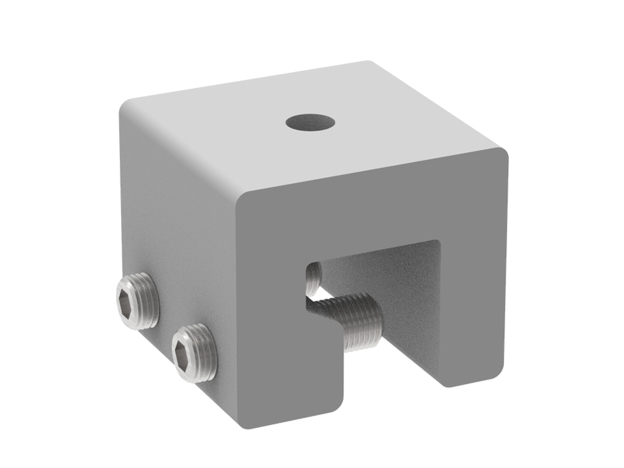

Components

Part Name	Quantity	Specification	Material
Clamp	1	100*90 mm	Anodized Aluminium 6005-T5
Side screw	2	M8*20mm	SUS304
EPDM mat	1	60*100	EPDM

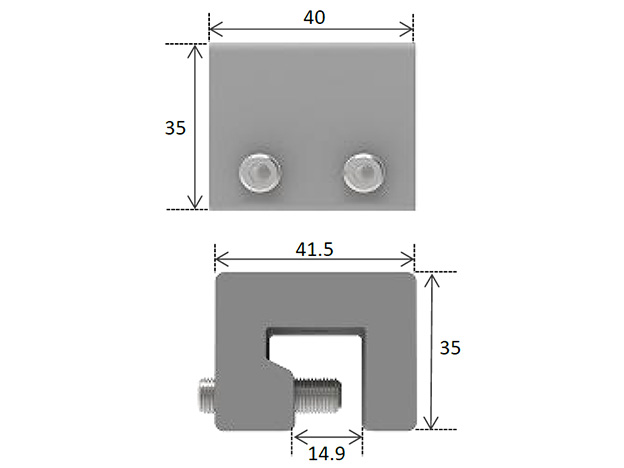

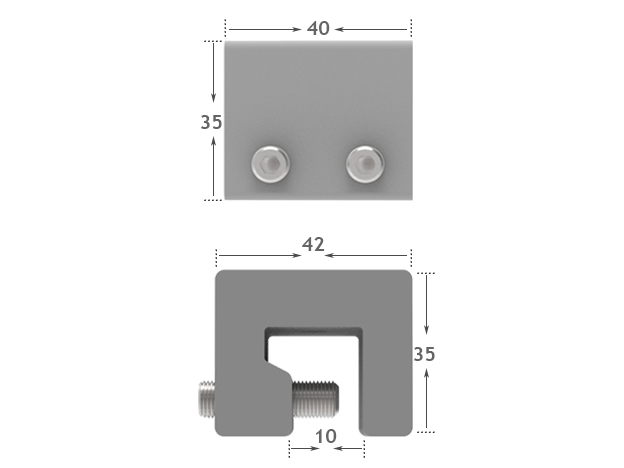

Technical Data

unit:mm

Max pull out load vertical to roof:	7.8KN
Screw tension:	up to 4NM
Ultimate Tensile Strength：	62
Tensile Yield Strength：	42
Fatigue Strength：	100 Mpa
Shear Modulus：	26.0 Gpa
Shear Strength：	205 Mpa
Hardness, Knoop：	21
Hardness, Vickers：	701
Elongation at Break：	0.80%
Modulus of Elasticity：	69.0 Ga
