MINI rail is solar mountingr which can be used to metal sheet roof,corrugated and trapezoidal,rail-less, easy

Features Components Technical Data Videos Downloads Projects

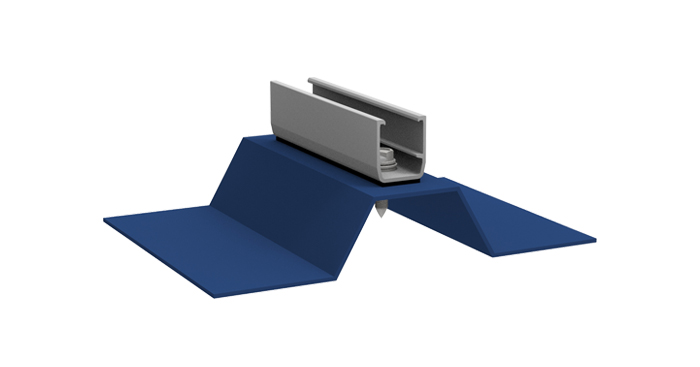

WOCHN U mini rail mounting system for solar installation has been specially developed for metal sheet roof, like trapezoidal sheet roof and corrugated iron roofs. It's a variant of Mini rail system and impresses with its universality and simplicity. The whole system consists only four components and easy to install. This system is workable for both portrait and landscape orientation. Watertight seal is dispalyed by using the four EPDM mat. Short rail system with pre-punched holes for quick mounting.

Features

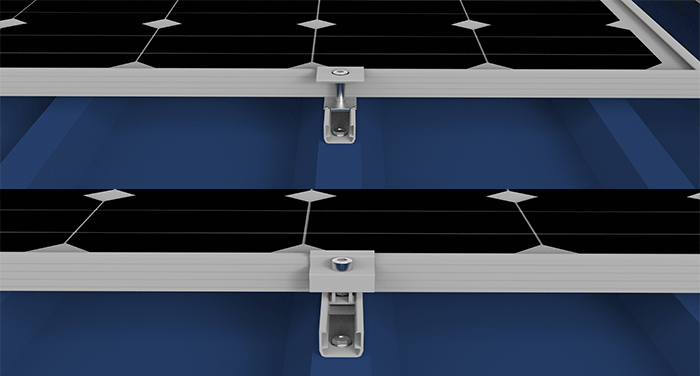

Universal

Universal for solar installation on pitched roofs with trapezoidal sheet metal , sandwich panels roofs, corrugated iron roofs in different size

Universal Mid Clamps and End Clamps used for different thickness Solar Modules

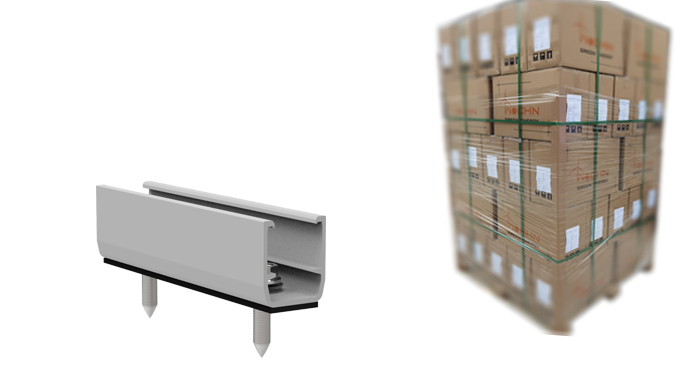

Easy and Cost-effective

Easy to transport and handle to roof top

Easy to make fast installation

Easy to make stock to distribute

Easy to save logical cost, installation cost,labor cost

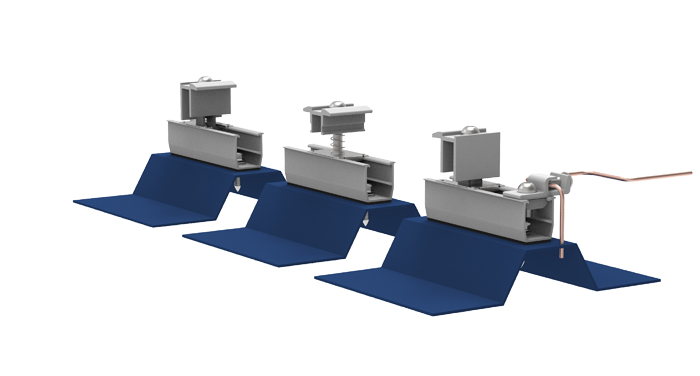

Quick Mounting

Only 4 components required

Faster to handle short Mini Rail System compared with long Rail System

Self-tapping screws used, no pre-drilling

Self-adhesive EPDM mat pasted and self-tapping screws with sealing washers , double protection for weatherproof, no addition glue needed

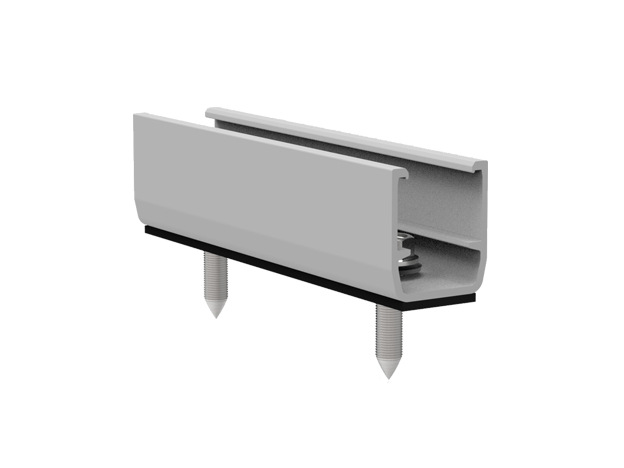

Components

Part Name	Quantity	Specification	Material
U Mini rail	1	L=150mm	Anodized Aluminium 6005-T5
Self driling screw	2	M6.3*25mm	SUS410
EPDM pad	2	26*40mm	EPDM

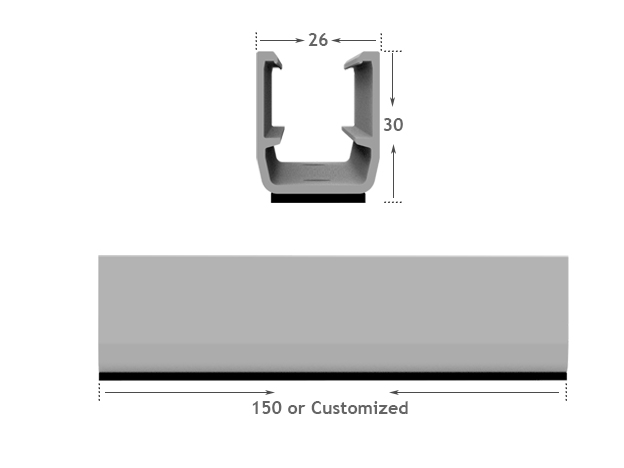

Technical Data

unit:mm

Product name	U MiniRail system
Application	Trapezoidal sheet metal, sandwich panels, corrugated sheet roofs
Inclination	Any roof inclination
Material	Stainless SUS304
Finish	Nature
PV module	Framed or Unfreamed
Module size	Small and Big modules
Module orientation	Portrait
Module direction	Any direction
Design wind loading	Up to 60m/s
Design snow loading	Up to 1 metre
Roof height	Up to 20 metre
Design Standard	EN1991, AS1170,UL1703,JIS C 8955:2011,CE,TUV
