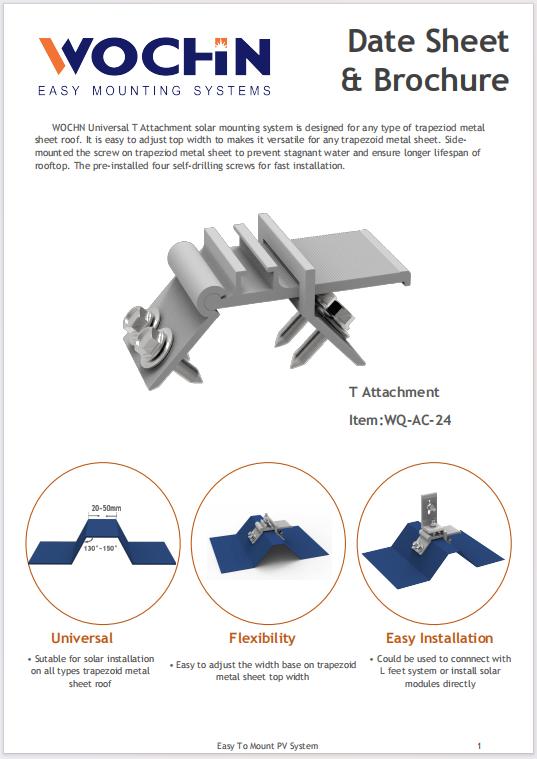

WOCHN Universal T Attachment solar mounting system is designed for any type of trapeziod metal sheet roof. It is easy to adjust top width to makes it versatile for any trapezoid metal sheet. Side-mounted the screw on trapeziod metal sheet to prevent stagnant water and ensure longer lifespan of rooftop. The pre-installed four self-drilling screws for fast installation. Connect rail to achieve the high wind load and snow loading. It is more reliable and easier solar mounting system for pv-installation.

Features

Universal

Suitable for solar installation on all types trapezoid metal sheet roof

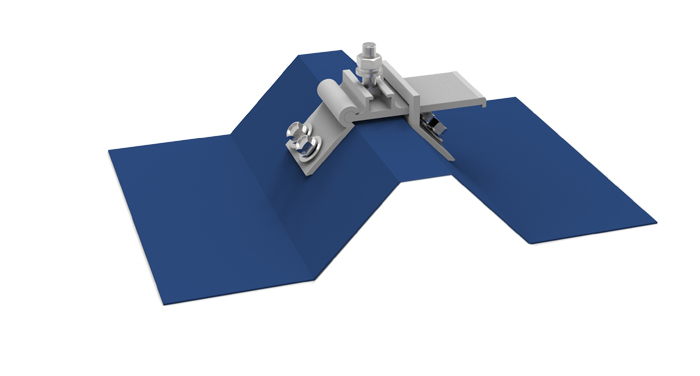

Easy Installation

Easy to mount on trapezoid metal sheet, only need 4 self drilling screw

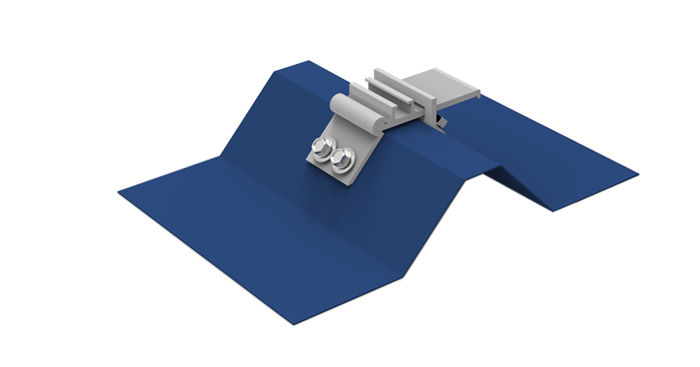

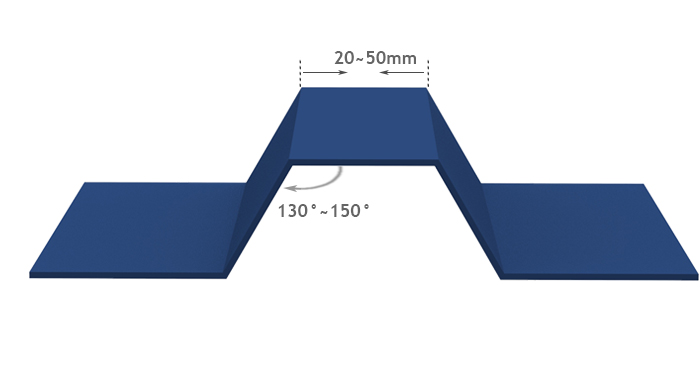

Easy to adjust the width base on trapezoid metal sheet top width

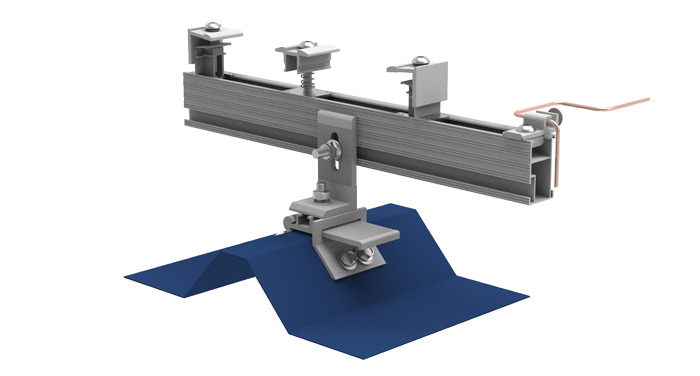

Flexibility

Easy to make stock to distribute thanks to universal usage

Could be used to connnect with rail system or install solar modules directly

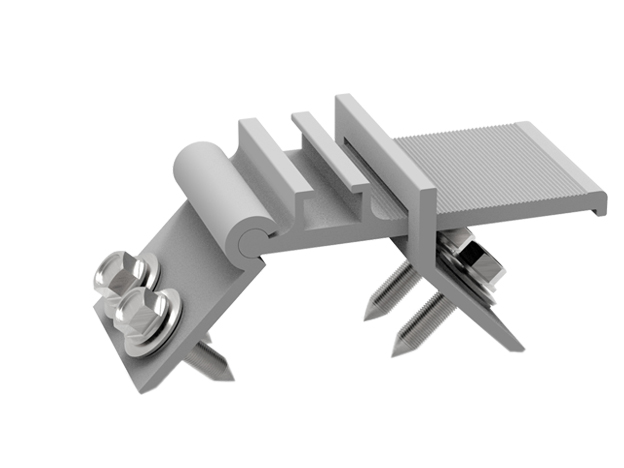

Components

Part Name	Quantity	Specification	Material
Clamp	1		Anodized Aluminium 6005-T5
Side self-drilling screw	4	M6.3*30 mm	SUS304

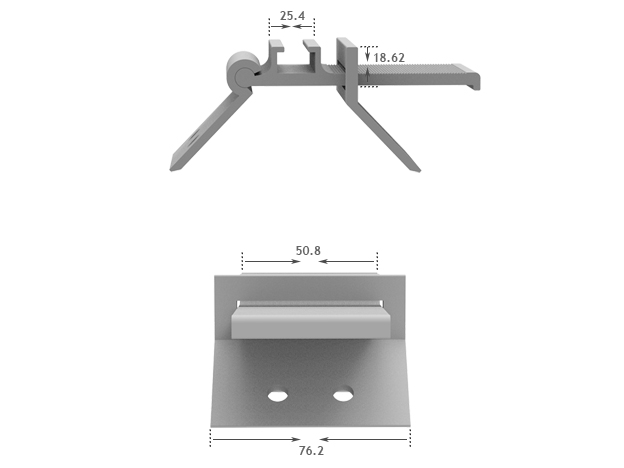

Technical Data

unit:mm

Product name	T Attachment
Application	Trapezoid Metal Sheet
Inclination	Any inclination
Material	Aluminium Al6005-T5
Finish	Nature
PV module	Framed or Unfreamed
Module size	Small and Big modules
Module orientation	Portrait and Landscape
Module direction	Any direction
Design wind loading	Up to 60m/s
Design snow loading	Up to 1 metre
Roof height	Up to 20 metre
Design Standard	EN1991, AS1170,UL1703,JIS C 8955:2011,CE,TUV
