SP Pile ground solar mounting system is robust system for PV mounting systems to any site or terrianground

Features Components Technical Data Videos Downloads Projects

WOCHN SP ground mount system is reliable facility for PV mounting systems installtion in any terrian area. Installtion is simple with only a few structural components. Strong pile support for easy and fast for fastest mechanized operation and installation.We also provide customized solutions and detailed offers including all structural calculations. Depending on customers' requirements, environmental conditions, we use long-lasting, high-quality galvanizing steel or aluminium structures to ensure longer lifespan and high resistance to corrosion. It is robust construction and more suitable for 2MWp + project with low-level wind load use.

Features

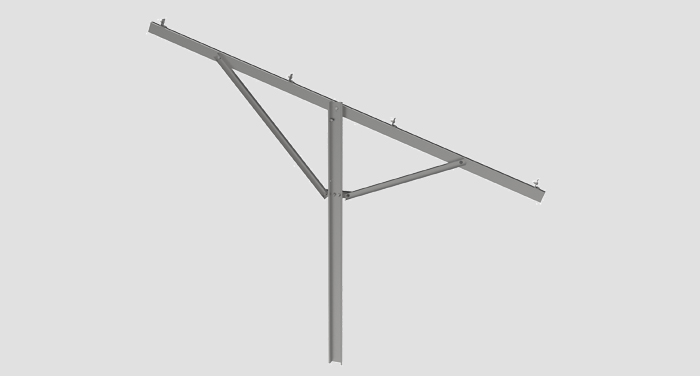

Long-lasting and reliable

Long-lasting thanks to hot deep galvanized steel material or Zinc aluminum magnesium material used, high corrosion resistance

The C steel section full used in the DP System, are designed and certificated to load big wind speed and snow

Designing load base on EN1991 and meet other internatioal standard

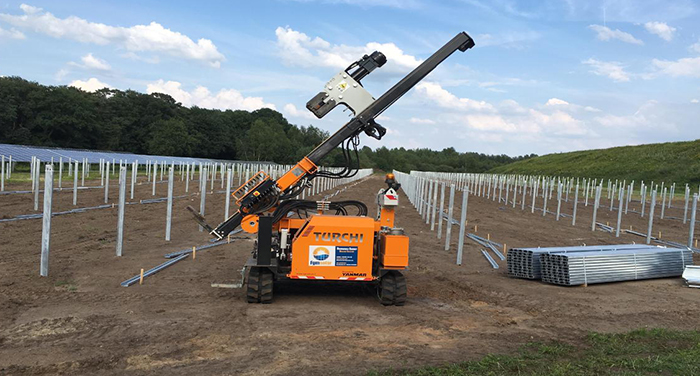

Mechanized installation and time-saving

Strong pile support for easy and fast for fastest mechanized operation and installation

Pre-assembly components for time-saving of the onsite installation

OEM technical support

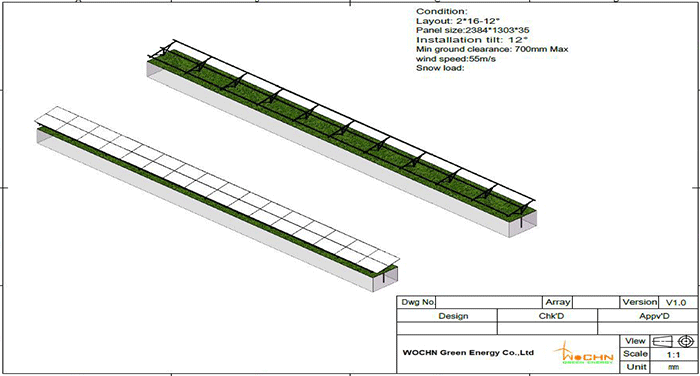

WOCHN do customized support, including:Customized technical drawing,customized force loading report and customized length production.Just tell us below, we will do the OEM service for you:

Unit array or layout drawing

Solar modules specification

Minimum height required

Tilt angle required

Foundation type

Maxmium wind speed

Maxmium snow load

Fast delivery for MW+ projects

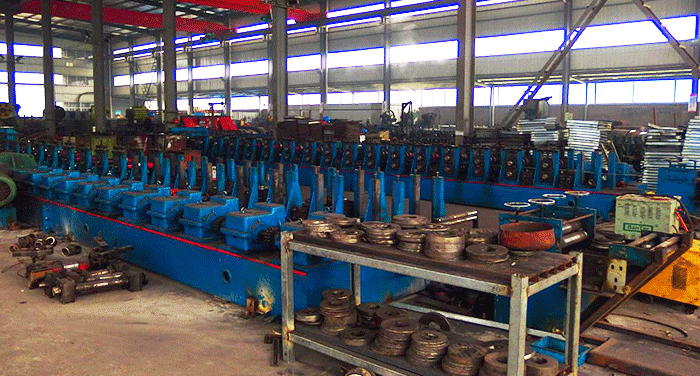

6 steel section production line ensure fast production

Auto-drilling machine to ensure fast cutting and drilling

Professional assemble team and package team

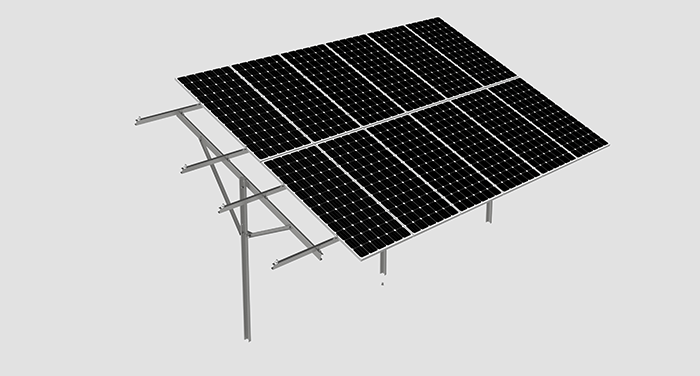

Wide range of usage

Suitable for all solar modules installation

Installed as landscape or portrait array are workable

Multi-row, 2/3 panles portrait, 2/3/4/5/6 panels landscape arrays all workable

Workable for plains, swamps, swamps, mountains

Height can be from 0 to 2500mm

Components

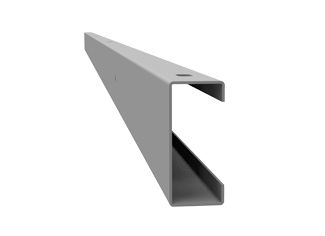

Beam

For connecting pile leg, double support

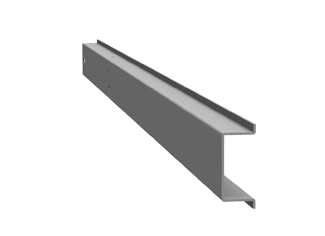

Pillar

Strong Pile support for mechanized operation install

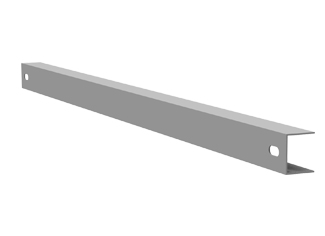

Side support

For connecting pile leg, double support

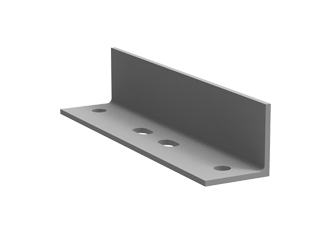

Transfer kit

For connecting side support, double support

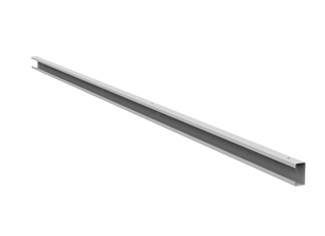

C section rail

For ground solar installation

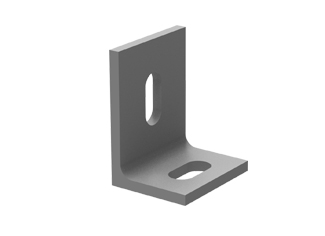

Rail fix kit

Easy compatible with rail system

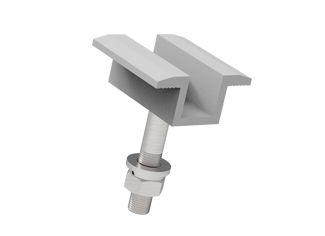

Mid Clamp

For 30/40/50mm thickness modules

Self-standing,easy installation

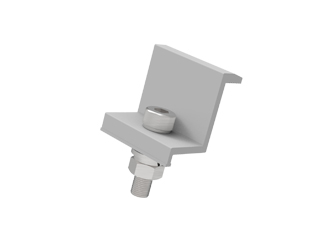

End Clamp

For 30/40/50mm thickness modules

Self-standing,easy installation

Technical Data

Product name	SP Mount System
Application	Ground
Inclination	Customized
Material	Hot deep galvanized steel material or Zinc aluminum magnesium
Finish	Hot deep galvanized level, average 75um
PV module	Framed or unframed
Module size	Small and Big modules
Module orientation	Portrait and Landscape
Module direction	South , North
Design wind loading	Up to 60m/s
Design snow loading	Up to 1 metre
Roof height	Up to 20 metre
Design Standard	EN1991, AS1170,UL1703,JIS C 8955:2011,CE,TUV
