AW ground solar mounting system is robust facility system for PV mounting systems to any site or terrianground

Features Components Technical Data Videos Downloads Projects

WOCHN AW ground solar mounting system is robust facility system for PV mounting systems to create a cost-effective structure capable of handling any site or terrian challenge. Installation is simple with only a few structural components and no drilling, welding, or heavy machinery required. Pre-assembly components to time-saving of the onsite installtion. In addition, the system works with a variety of foundation options, including concrete foundation and ground screws. Compatible with soil classess 2-4. And also provide customized solutions and detialed offers including all structural calculations depending on customers' requirement. All components use long-lasting ,corrosion aluminium process in order to minimize the levelized cost of energy.

Features

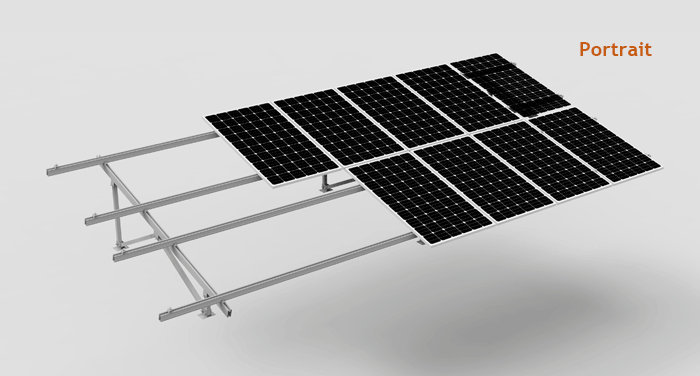

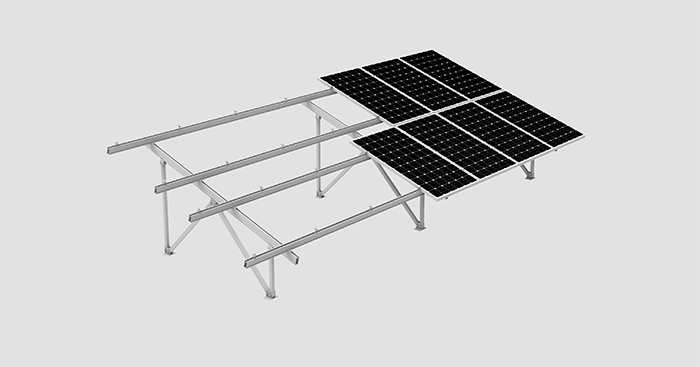

Wide range of usage

Concrete and ground screw as foundation are available

Increase height that used on flat roof with limited space

Suitable for all solar modules installation

Installed as landscape or portrait array are workable

Multi-row, 2/3 panles portrait, 2/3/4/5/6 panels landscape arrays all workable

Adapts well to different terrains due to aluminum process

Height can be from 0 to 2500mm

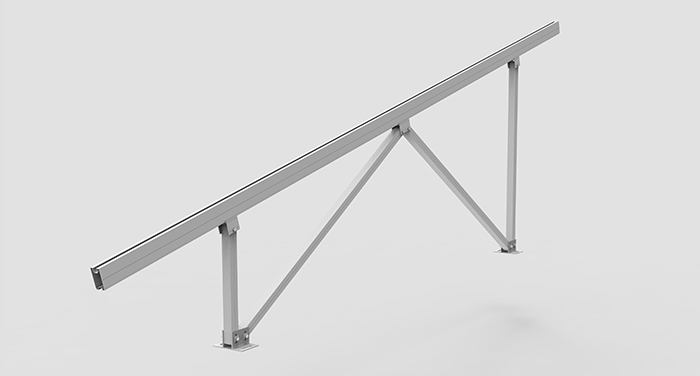

Long-lasting and reliable

All components use long-lasting ,corrosion aluminium process, high resistance to corrosion

The aluminium section used in the AW System are designed and certificated to load big wind speed and snow

Designing load base on EN1991 and meet other internatioal standard

OEM technical support

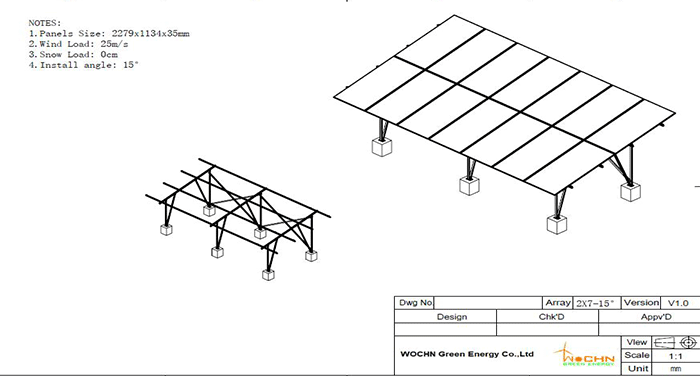

WOCHN do customized support, including:Customized technical drawing,customized force loading report and customized length production.Just tell us below, we will do the OEM service for you:

Unit array or layout drawing

Solar modules specification

Minimum height required

Tilt angle required

Foundation type

Maxmium wind speed

Maxmium snow load

Fast delivery for MW+ projects

5 aluminium section production line ensure fast production

Auto-drilling machine to ensure fast cutting and drilling

Professional assemble team and package team

Easy-to-install and time-saving

Pre-assembled components to save onsite installation time

Low weight for transportation and assembly

Prepared directly for assembly

Components

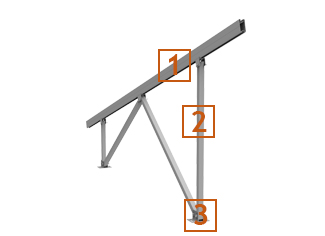

AW Leg

Pre-assembled to save onsite installation

High-quality corrosion aluminium process

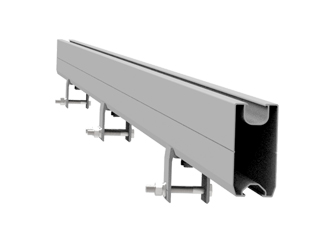

Beam with transfer kits

For connecting AW Leg, double support

High-quality corrosion aluminium process

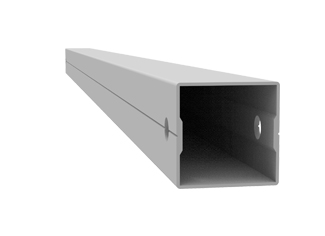

Tube

For connecting AW Leg, double support

High-quality corrosion aluminium process

Base

For connecting ECO Leg, double support

High-quality corrosion aluminium process

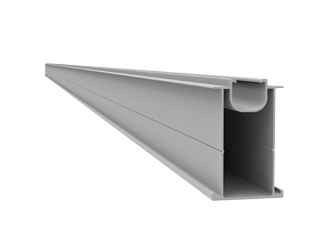

9# rail

Universal for ground solar installation

Silver finish, customized length

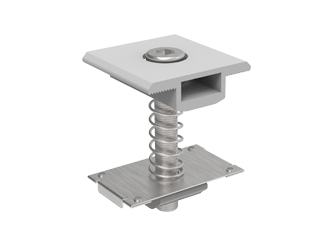

Mid Clamp

Universal for 30-40mm thickness modules

Self-standing,easy installation

End Clamp

Universal for 30-40mm thickness modules

Self-standing,easy installation

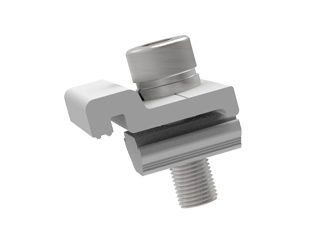

Rail fix kits

Easy compatible with rail system

Technical Data

Product name	AW Mount System
Application	Ground, Concrete roof
Inclination	Standared or customized
Material	Aluminum 6005-T5
Finish	Anodized clear, average 12um
PV module	Framed or unframed
Module size	Small and Big modules
Module orientation	Portrait and Landscape
Module direction	South , North
Design wind loading	Up to 60m/s
Design snow loading	Up to 1 metre
Roof height	Up to 20 metre
Design Standard	EN1991, AS1170,UL1703,JIS C 8955:2011,CE,TUV
