PAT solar mount system is triangle system for portriat solar installation on flat roofs and concrete surface

Features Components Technical Data Videos Downloads Projects

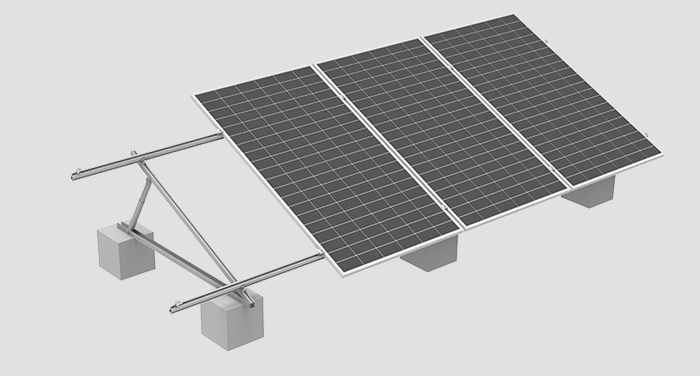

WOCHN PAT solar mount system is triangle system for portriat solar installation on flat roof. It is simple and fast installation of PV modules on flat roofs and surface. The triangular design provides a stable, robust and sturdy base for the system. It's versatile of the application which ballasted with a concrete foundation or flat metal sheet roof.The tilt angle according to require to design. It also resisting the extreme wind load and snow forces experienced over a rooftop lifespan. And easy to connect with metal sheet attachment with long U base, flexibility to make tilt and different direction on flat metal sheet roof. All component in the system is made with aluminium and stainless steel to ensure complete corrosion resistance and longer lifespan.

Features

Universal

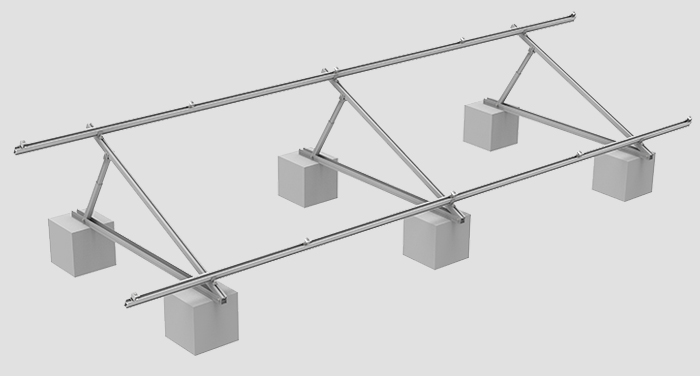

WOCHN PAT Triangular Mount System fit multitude of different flat concrete roof or small ground site PV installations with concrete foundations, the professional design terminate future temporary site fabricating structures of using aluminum profile

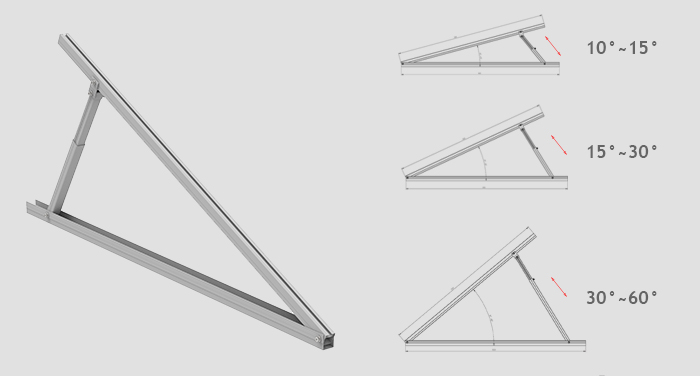

Fixed Inclination Angle

The 3 types fixed inclication inclication angle to meet most courtries solar installation request

/ 10 degree

/ 20 degree

/ 30 degree

Custom Inclination angle available upon request

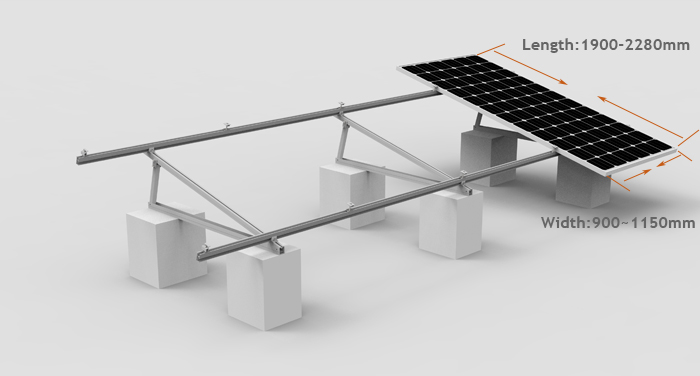

Work for most modules

Full consider the the solar module size for most PV modules, it's suitable for most solar modules installation in the market

Make sure the max yield of system, any lengths of connector can be made for different layouts

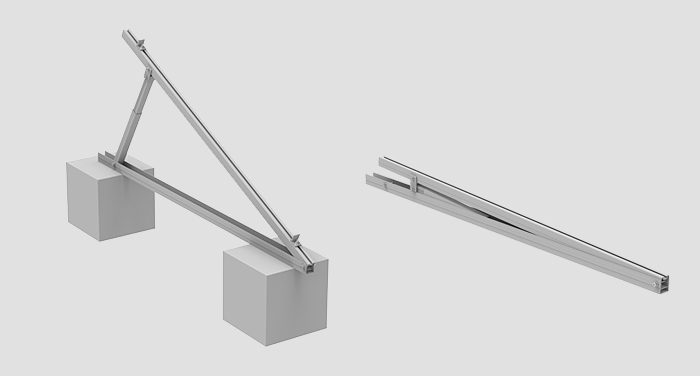

Highly Pre-assembled

The triangular legs are fully-preassembled, and packed on pallets, easy to pick up it

Easy transporation and fast site installation with less labor cost

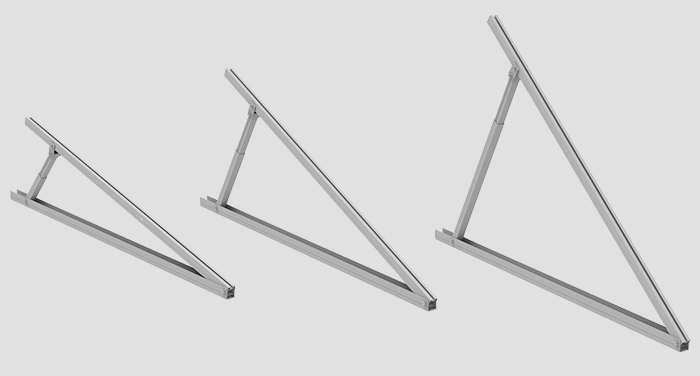

Customized Size Workable

It's flexible customized the Triangular Mount System upon the inclination and the solar module size

The customized rail length upon arrays length is avaliable

Components

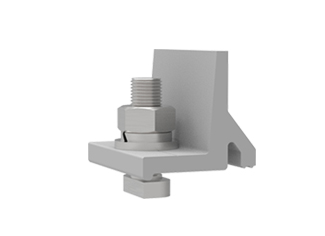

Rail Nut Kits

Easy compatible with rail system

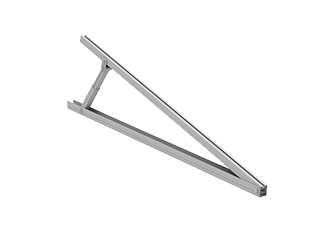

PAT Leg

Fixed inclination angle: 10,20,30 degree

Highly pre-assembled for fast site installation

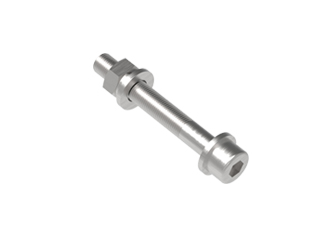

Expand Bolt

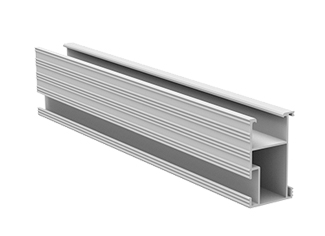

T-Rail

Universal for pitch roof and flat roof solar installation

Customized length available

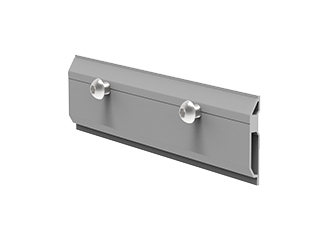

Rail Splice

For connecting 5L rail, double support

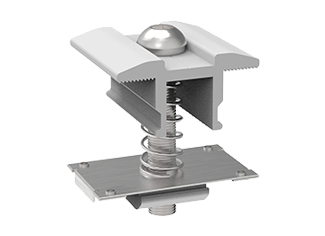

Mid Clamp

Universal for 30-40mm thickness modules

Self-standing,easy installation

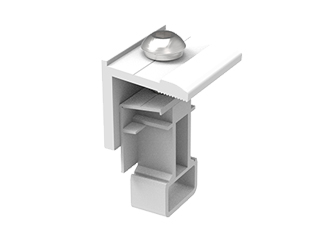

End Clamp

Universal for 30-40mm thickness modules

Self-standing,easy installation

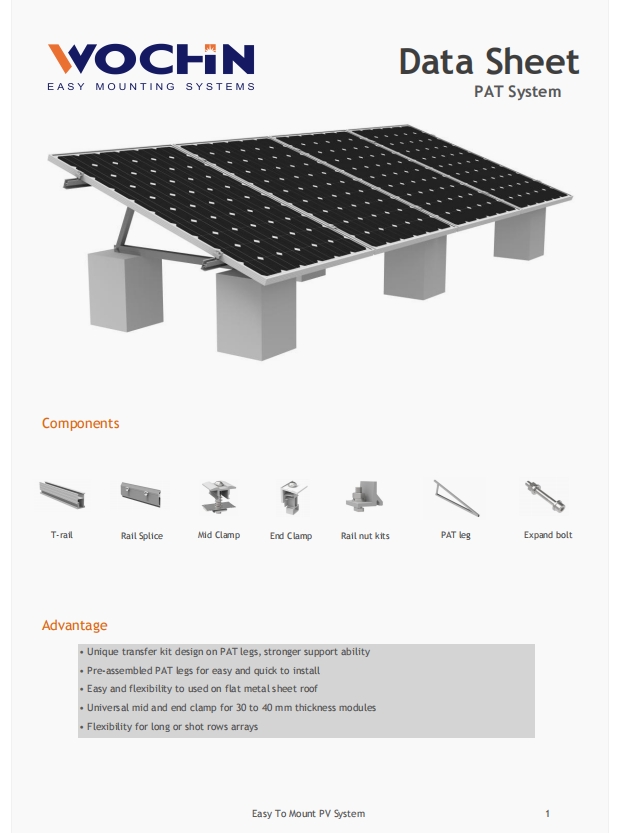

Technical Data

Product name	PAT Mount System
Application	Flat concrete roof and small ground
Inclination	Standared or customized
Material	Aluminum 6005 T5
Finish	Anodized clear, average 12um
PV module	Framed
Module size	Small and Big modules
Module orientation	Portrait
Module direction	South , North
Design wind loading	Up to 60m/s
Design snow loading	Up to 1 metre
Roof height	Up to 20 metre
Design Standard	EN1991, AS1170,UL1703,JIS C 8955:2011,CE,TUV
