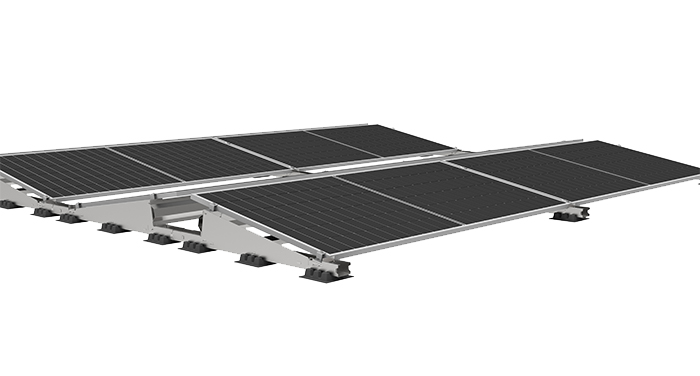

WOCHN MAC Ballast Solar Mounting System is a photovoltaic mounting system for mounting solar panels on flat roofs. It is suitable for buildings with asphalt membrane roofs, EPDM/TPO/PVC membrane roofs, and green/gravel roofs. The system has low roof load requirements and is easy to install solar panels. The integrated base beam is easy and quick to install. The simple ballasting method makes the system more robust. The system is made of zinc aluminum magnesium. This metal has many advantages, including being light, strong, and highly corrosion-resistant.

Features

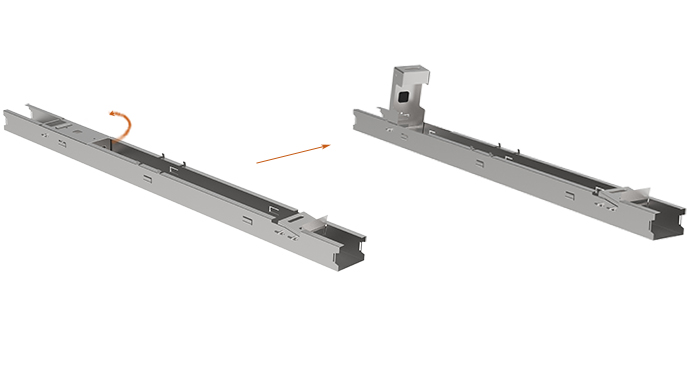

Base Beam design

The ballast legs are integrated with the base beam to save installation time.

Save time and labor costs to the greatest extent

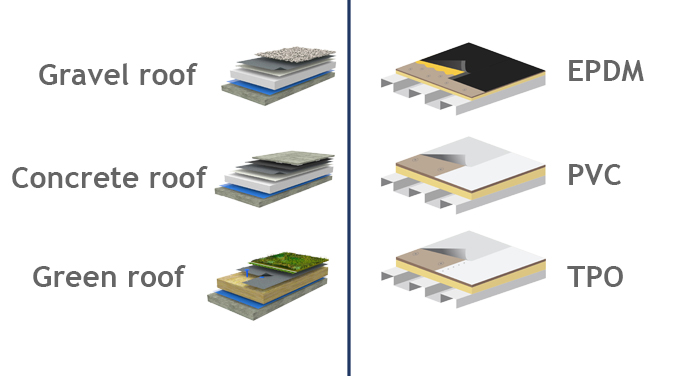

Versatile application on all flat roof coverings

Versatile application on all type flat roof coverings,like the bitumen roof, EPDM roof,TPO roof,

PVC membrane roof, foil roof, concrete roof and green or gravel flat roofs

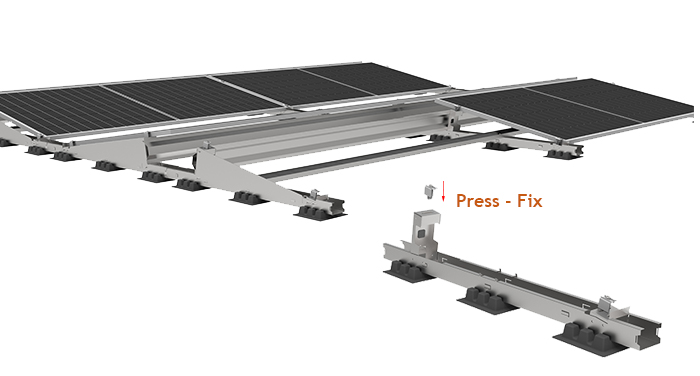

Easy and fast Installation

5 assembly steps for super-fast installation

Just press the mid and end clamp to fix , increase ease of installation

Made by zinc aluminum magnesium, it's light to handle to high roof

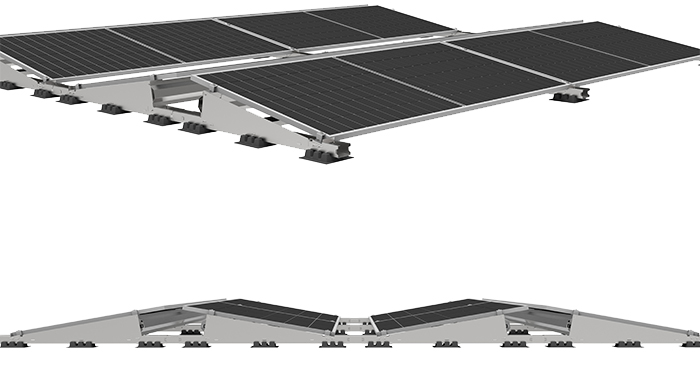

Non roof penetration and low ballast load

West to east direction meet to aerodynamic construction,the wind generates surface pressure to stably secure it on the roof, and reduce the ballast

The use of EPDM mat for high coefficients of friction reduce ballast

Non roof penetration, well protect waterproof and insulation layer

Designing load base on EN1991 and meet other international standard

Workable for most modules

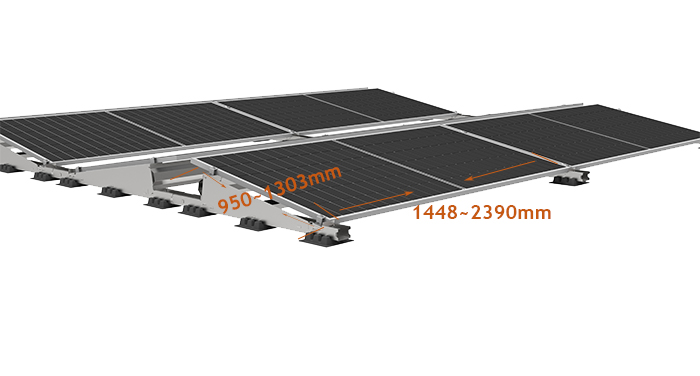

Permissible module dimensions (L×W×H): 1448-2390 × 950-1303 × 30-40mm

Clamping at the short module side permitted

Components

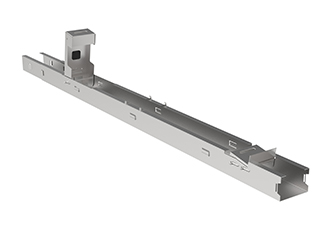

Base Beam

Integrated front and rear feet

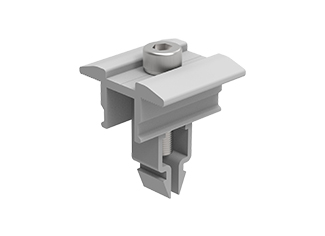

Mid Clamp

Universal for 30-40mm thickness modules

Self-standing, easy click installation

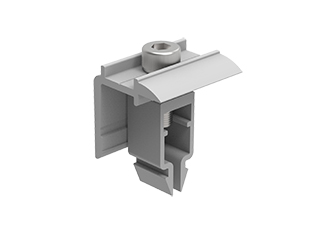

End Clamp

Universal for 30-40mm thickness modules

Self-standing, easy click installation

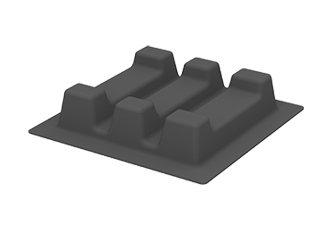

Plastic Base

Used to protect TPO/PVC roof

High coefficients of friction to reduce ballast

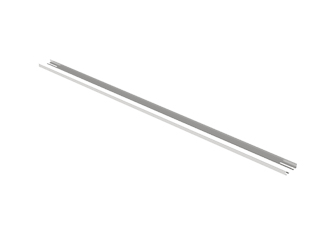

Cement Support Load

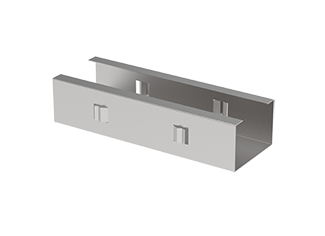

Connerctor

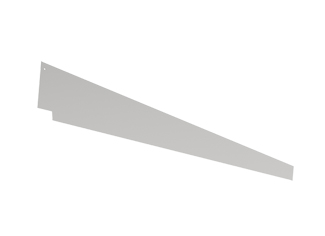

Side windshields

Technical Data

Product name	MAC Mount System
Application	Flat roofs
Inclination	10 deg or customized
Material	Zinc aluminum magnesium
Finish	Nature
PV module	Framed or Unframed
Module size	Small and Big modules
Module orientation	Landscape
Module direction	West to East
Design wind loading	Up to 60m/s
Design snow loading	Up to 1 meter
Roof height	Up to 20 meter
Design Standard	EN1991, AS1170, UL1703, JIS C 8955:2011, CE, TUV
