ECO W/E Ballast mount system is a mounting system for installing PV modules on flat roofs,all any flat roof

Features Components Technical Data Videos Downloads Projects

WOCHN ECO W/E Ballast mount system is a mounting system for installing PV modules on flat roofs to face west or east. It is used on buildings whose roof is made of bitumen membrane, EPDM/TPO/PVC membrane roofing and green/gravel roofs. This system with low load and no perforation of the rooftop, the installation of panels is facilitated and integrity of the roof preserved. And more suitable for residential installation because it's very simple and easy to stock. Whole system is used minimum components for flat roof installation, which consists of just one kits. It's time-saving and low labor cost for installers due to uses the minimal components to install. Only need lock the panel frame with screw on the ECO leg. The leg process uses 100% aluminium. This metal has many advantages including being light,strong, recyclable and highly corrosion resistance.

Features

Flexible Application

Versatile application on the flat roof,which made of bitumen, EPDM,TPO,PVC membrane roofs and green or gravel flat roofs

The best DIY idea for flat roof solar installation

The standard inclication angle including: 10 /20/30 deg

Strong & Non-penetrative

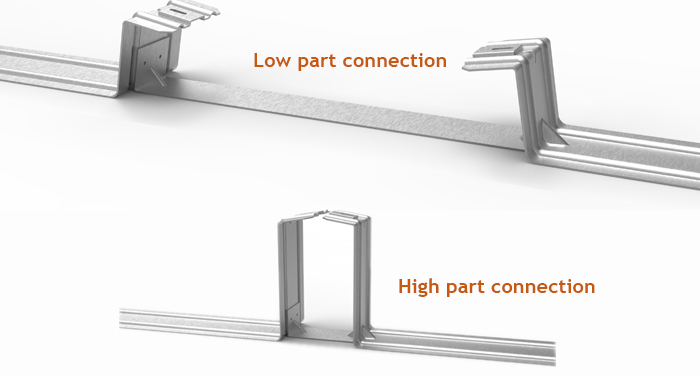

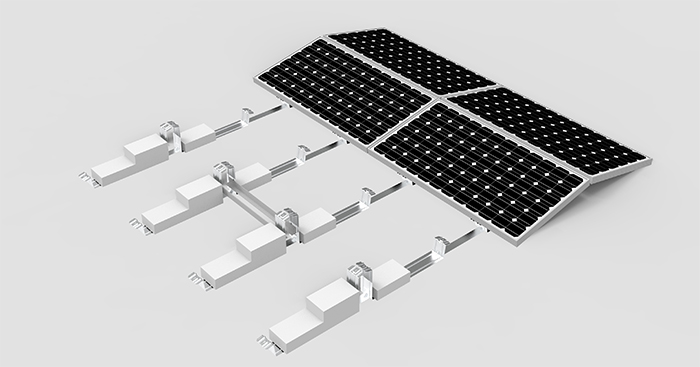

Easy to make ECO legs connect, only need two connector, easy to make system as west to east direction.

Designing load base on EN1991 and meet to other internatioal standard

Without perforation of the rooftop, the installation of panels is facilitated and integrity of the roof preserved

Build to Last

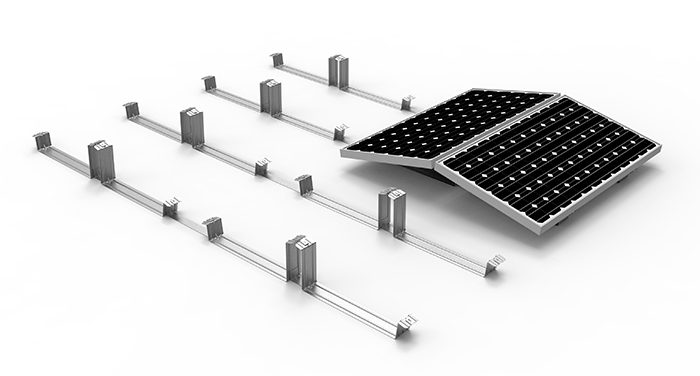

The ECO leg process used 100% aluminium 1070. This material has many advantages including being light, strong, recylable and highly corrosion resistance

High-quality material ensure longer lifespan and durable

Workable for solar Modules in wide range

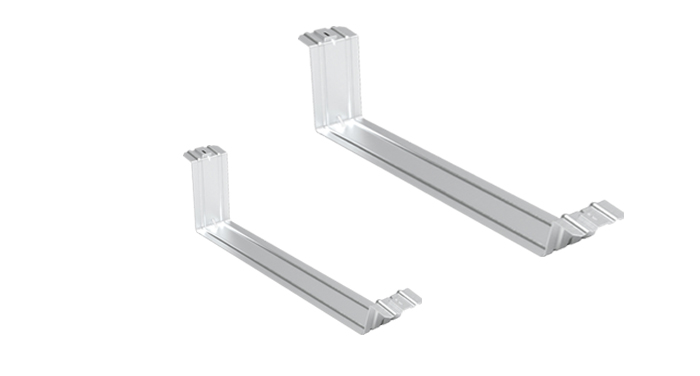

WOCHN own 4 serious ECO Legs to meet different solar modules specification installation requirement:

WQ-EC0-808: For solar modules width 800-900mm

WQ-EC0-995: For solar modules width 901-1000mm

WQ-EC0-1050:For solar modules width 1001-1050mm

WQ-EC0-1109:For solar modules width 1051 -1150mm

Low Ballast Load

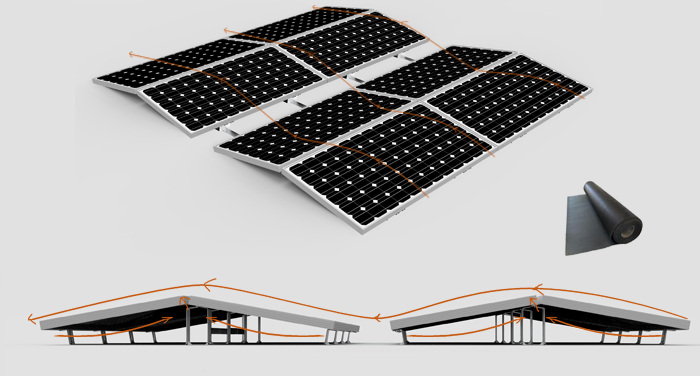

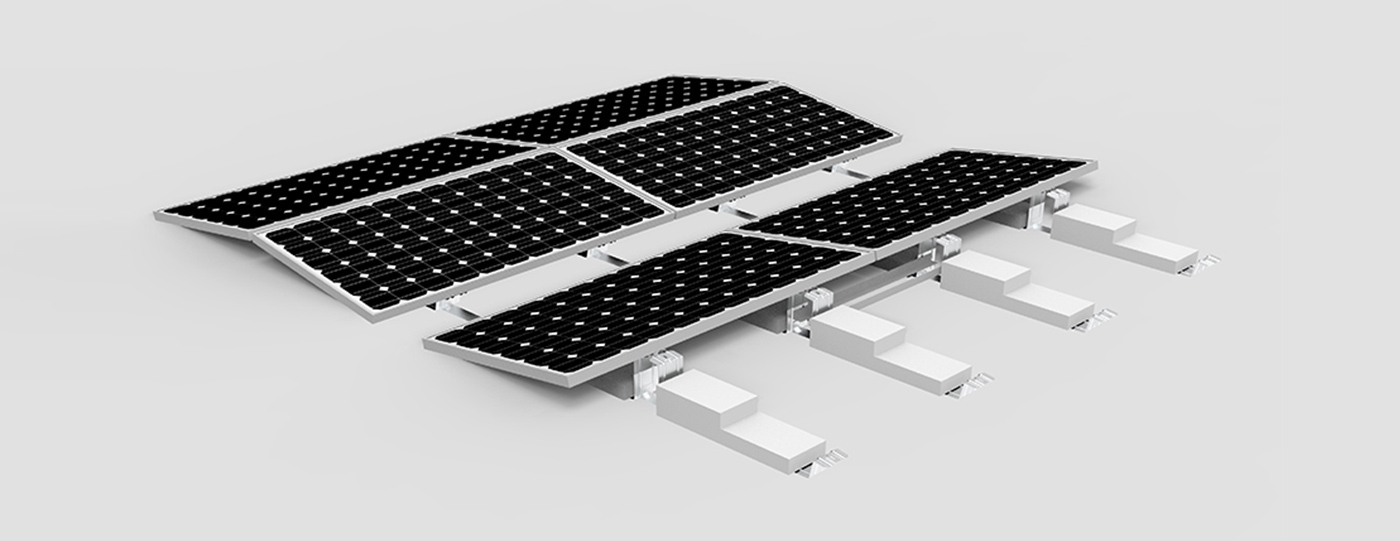

West to east direction meet to aerodynamic construction,the wind generates surface pressure to stably secure it on the roof, and reduce the ballast weight

The EPDM-mat with rubber granulates for clients option to protect roof surface and increase the coefficient of friction to decline ballast weight

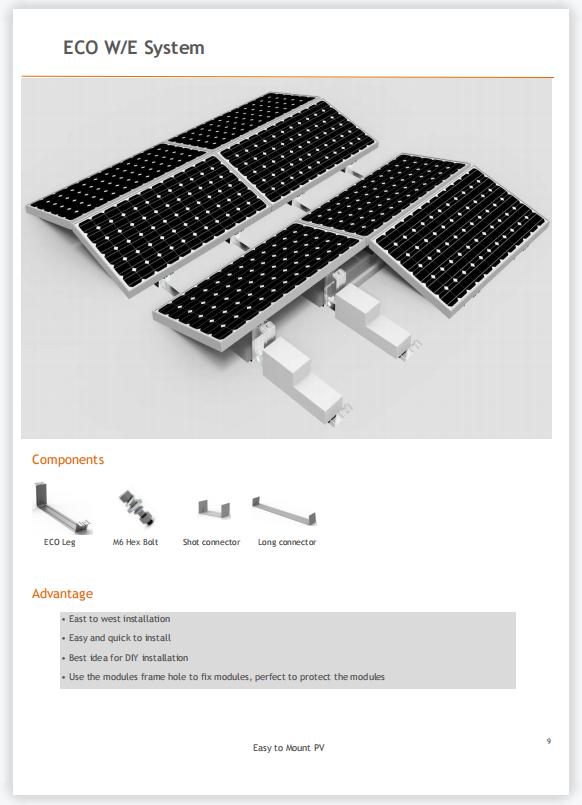

Components

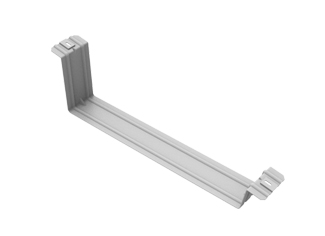

ECO Leg

2 screws to intsall, super and time-saving

4 types suitable for different solar modules specification

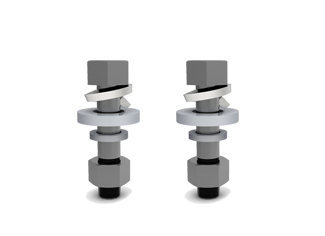

Bolts

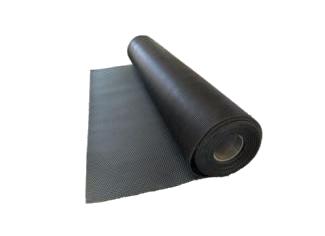

EPDM mat

EPDM mat used to protect TPO/PVC roof

High coefficients of friction to reduce ballast

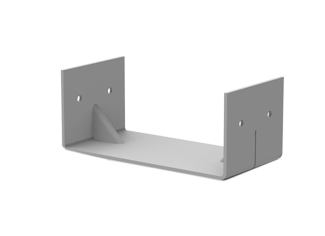

Short connection

For connecting ECO Leg, double support

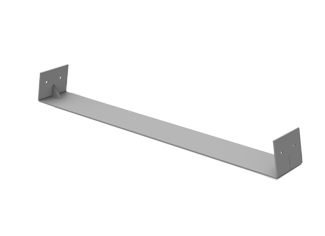

Long conncection

For connecting ECO Leg, double support

Technical Data

Product name	ECO W/E Mount System
Application	Flat EPDM,TPO,PVC, Concrete roofs
Inclination	Standared or customized
Material	Aluminum 1070
Finish	Nature
PV module	Framed
Module size	Small and Big modules
Module orientation	Landscape
Module direction	South , North
Design wind loading	Up to 60m/s
Design snow loading	Up to 1 metre
Roof height	Up to 20 metre
Design Standard	EN1991, AS1170,UL1703,JIS C 8955:2011,CE,TUV
