Arch 5.0 ballast mount system is a photovoltaic mounting system used for installing solar panels on flat roofs

Features Components Technical Data Videos Downloads Projects

WOCHN Arch 5.0 ballast mount system is a photovoltaic mounting system used for installing solar panels on flat roofs. It is used on buildings with bitumen membrane roofs, EPDM/TPO/PVC membrane roofs and green/gravel roofs. This system with low load requirement of the rooftop, the installation of panels is facilitated.The pre-assembled base beam with rubber pad to increase the coefficient of friction and reduce ballast. Multi-option of the ballast support. The use of aluminium angle rails results in a linear load distribution(rather than point load), thus reducing the risk of puncturing. The use of ballast tray results for quick install and low load-limit of the rooftop. And also can use of anchor with rail to achieve without ballasting which suitable for lower load require on the rooftop. The system process uses 100% aluminium. This metal has many advantages including being light,strong, recyclable and highly corrosion resistance.

Features

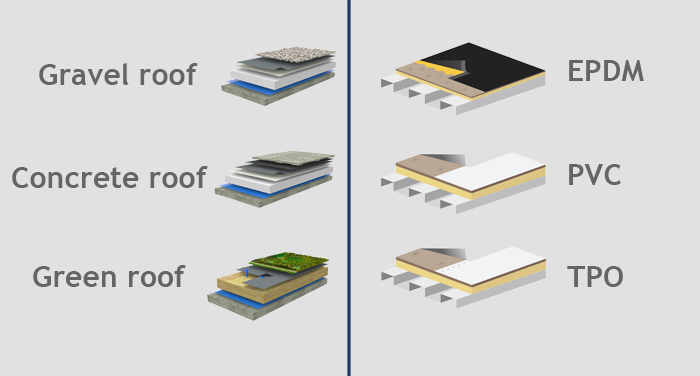

Versatile application on all flat roof coverings

Versatile application on all type flat roof coverings,like the bitumen roof, EPDM roof,TPO roof,

PVC membrane roof, foil roof, concrete roof and green or gravel flat roofs

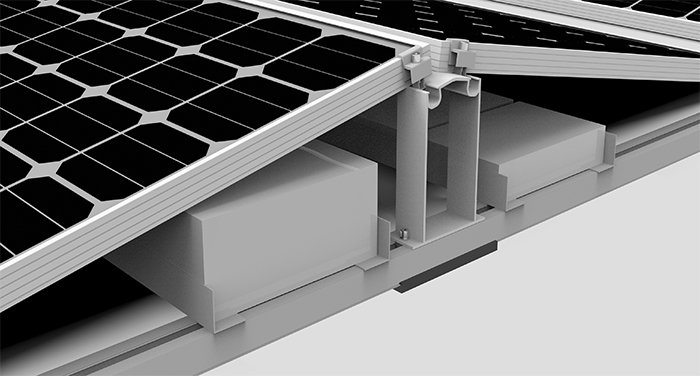

Easy and fast Installation

One back leg support two side modules, easy to install and fewer components to use

5 assembly steps for super-fast installation

Self-standing and universal mid clamp and end clamps used, increase ease of installation

Made by Anodized Aluminium 6005-T5, it's light to handle to high roof

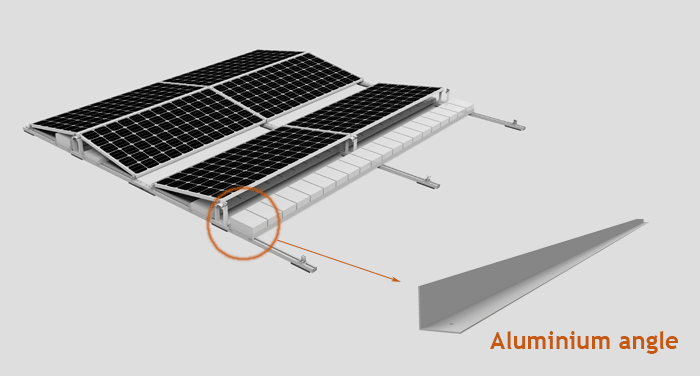

Multi-option ballast support

The use of aluminium angle rails results in a linear load distribution(rather than point load), thus reducing the risk of puncturing

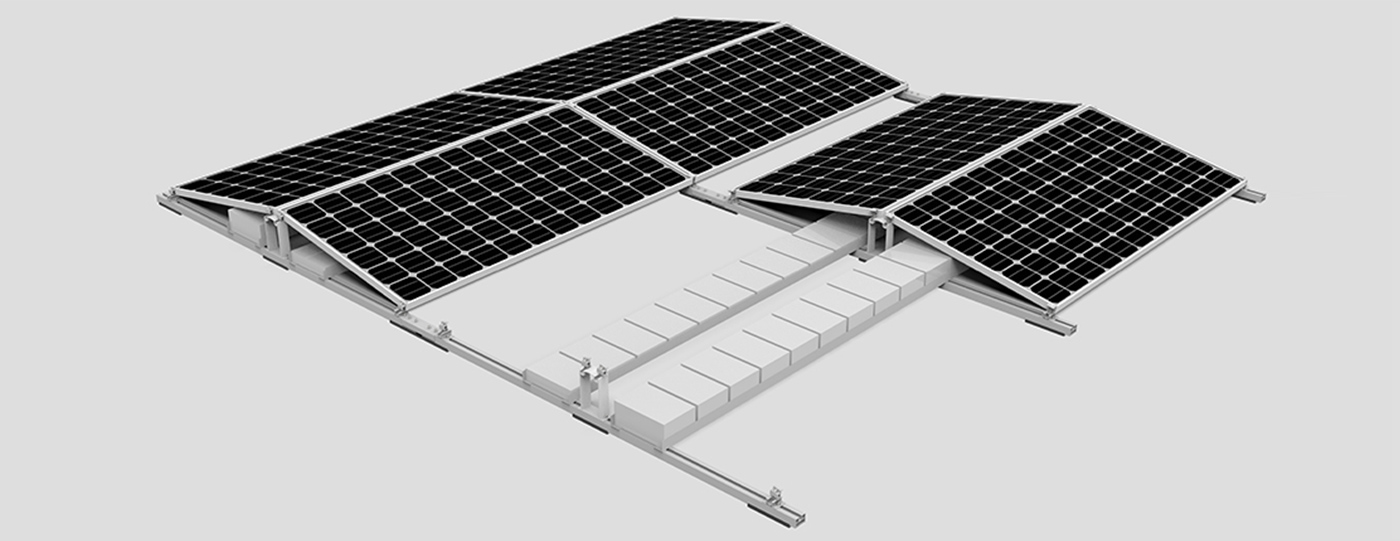

The use of ballast tray results for quick install and low load-limit of the rooftop

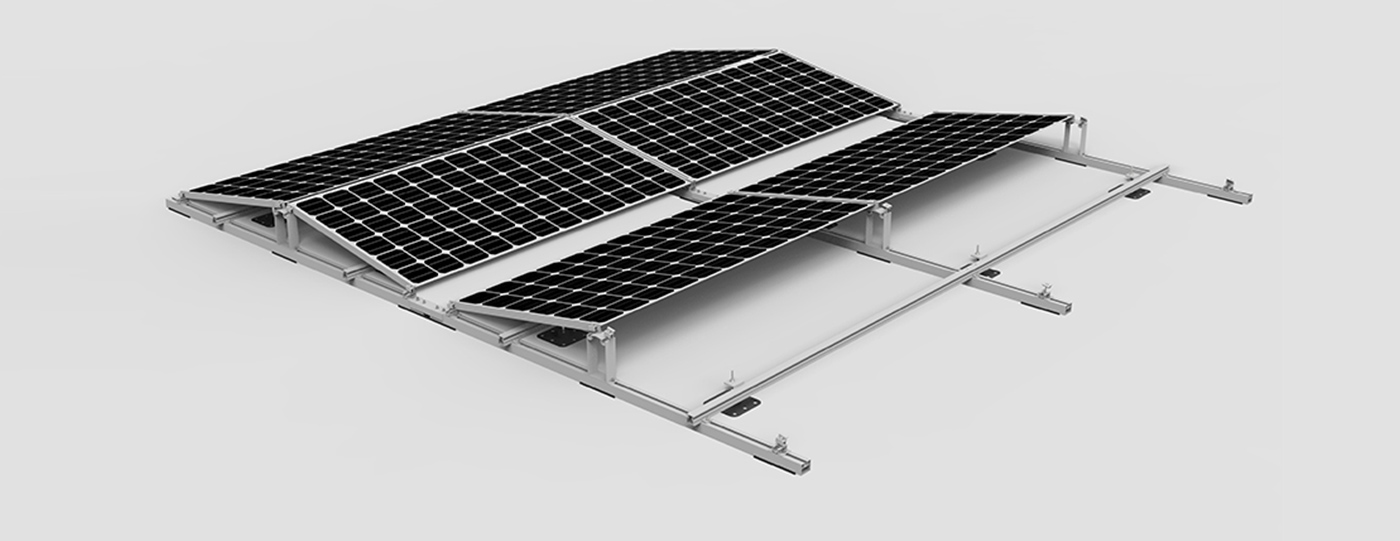

The use of anchor with rail to achieve without ballasting which suitable for lower load require on the rooftop

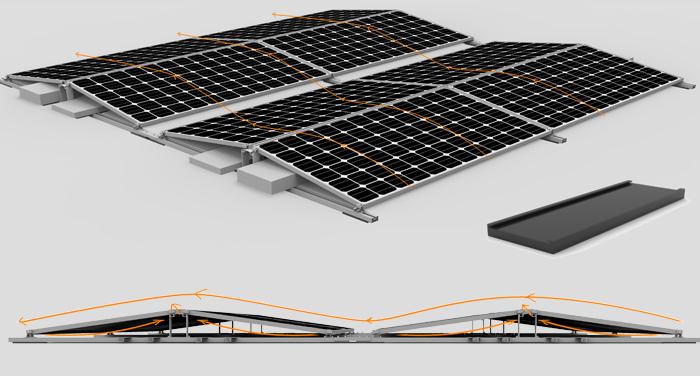

Non roof penetration and low ballast load

West to east direction meet to aerodynamic construction,the wind generates surface pressure to stably secure it on the roof, and reduce the ballast

The use of EPDM mat for high coefficients of friction reduce ballast

Non roof penetration, well protect waterproof and insulation layer

Designing load base on EN1991 and meet other internatioal standard.

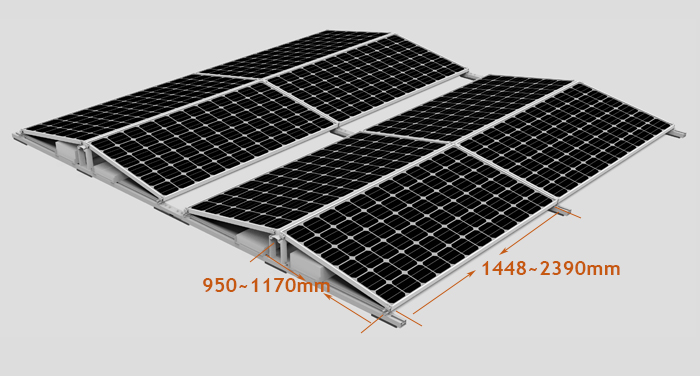

Workable for most modules

Permissible module dimensions (L×W×H): 1448-2390 × 950-1170 × 30-40mm

Clamping at the short module side permitted

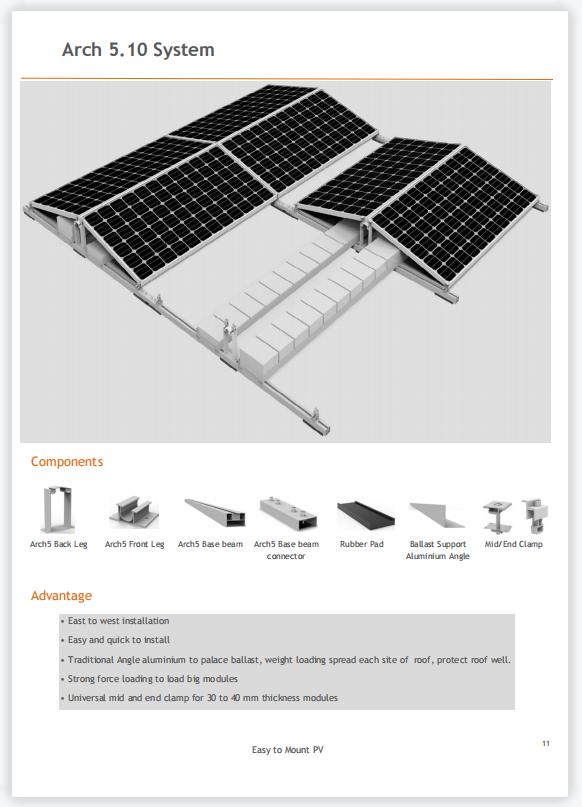

Components

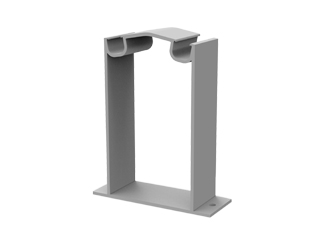

Back Leg

Module support elements for two-sided elevations

Flexible to install moudle width with 1096mm and 1134mm

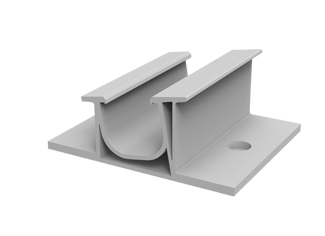

Front Leg

Module support elements for two-sided elevations

Flexible to install moudle width with 1096mm and 1134mm

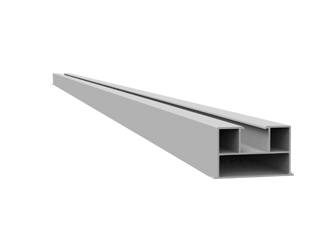

Base

No assembly steps for super fast install

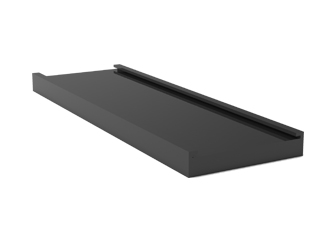

EPDM Rubber Pad

EPDM mat used to protect TPO/PVC roof

High coefficients of friction to reduce ballast

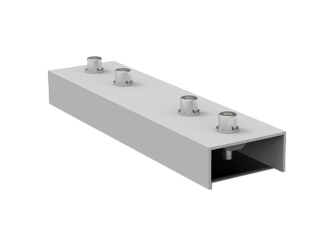

Base Connector

Snap-in system for base beam to accomplish connect

Applicable screw tightening to ensure longer use

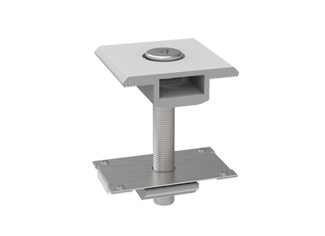

Mid Clamp

Universal for 30-40mm thickness modules

Self-standing, easy installation

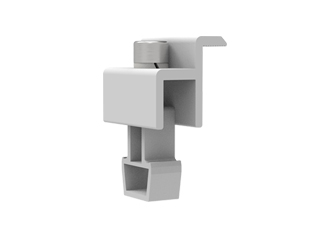

End Clamp

Universal for 30-40mm thickness modules

Self-standing, easy installation

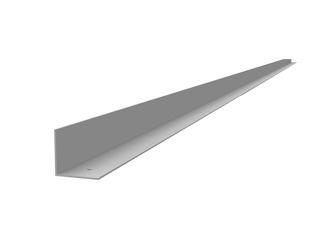

Ballast Kit

Snap-in system for base beam to accomplish connect

3 ballast kits for option

Technical Data

Product name	Arch 5.0 Mount System
Application	Flat roofs
Inclination	10 deg or customized
Material	Aluminum 6005-T5
Finish	Nature
PV module	Framed or Unframed
Module size	Small and Big modules
Module orientation	Landscape
Module direction	West to East
Design wind loading	Up to 60m/s
Design snow loading	Up to 1 meter
Roof height	Up to 20 meter
Design Standard	EN1991, AS1170, UL1703, JIS C 8955:2011, CE, TUV
