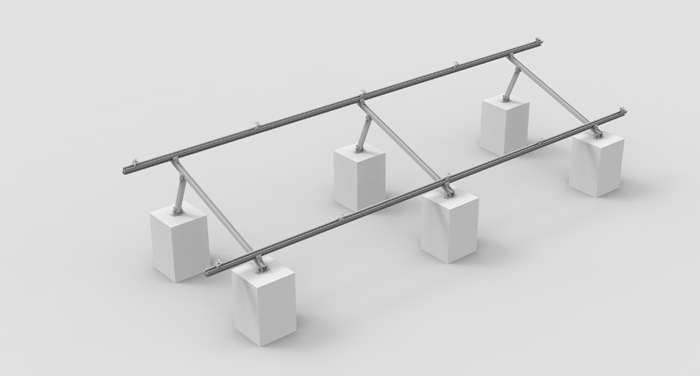

WOCHN APAT Triangular Solar Mounting System is for portriat solar installation on flat roof. It is easy and fast installation of PV modules on flat roofs and surface.The triangular design provides a stable, reliable and sturdy base for the system. It's versatile of the application which ballasted with a concrete foundation or directly connected with flat concrete roofs. This system supports a wide range for adjustable angle through to adjust the distance between front base and back base of the leg to achieve the tilt adjustable. The adjustable angle range is 10-60° available. The module arrays placed more longer, the price more cost -effective. And also resisting the extreme wind load and snow forces experienced over a rooftop lifespan. Every component in the system is made with aluminum and stainless steel to ensure complete corrosion resistance and longer lifespan.

Features

Universal

WOCHN APAT Triangular Mount System fit multitude of different flat concrete roof or small ground site PV installations with concrete foundations, the professional design terminate future temporary site fabricating structures of using aluminum profile

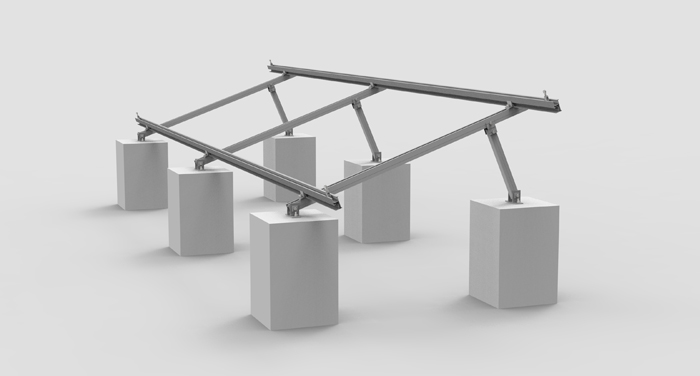

Inclination Angle Adjustable

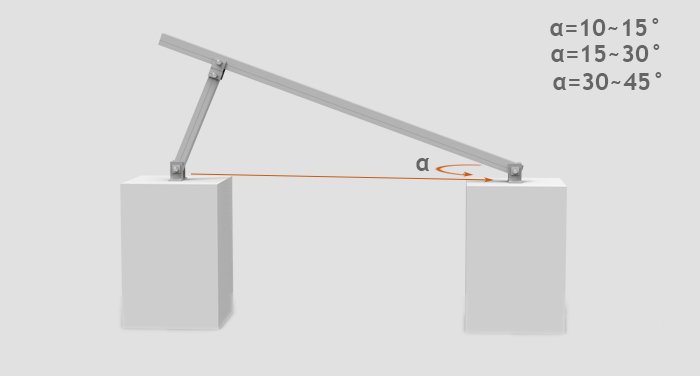

Easy to adjust the distance between front base and back base to reach the tilt adjustable

/10-15 degree

/15-30 degree

/ 30-45 degree

Custom Inclination angle available upon request

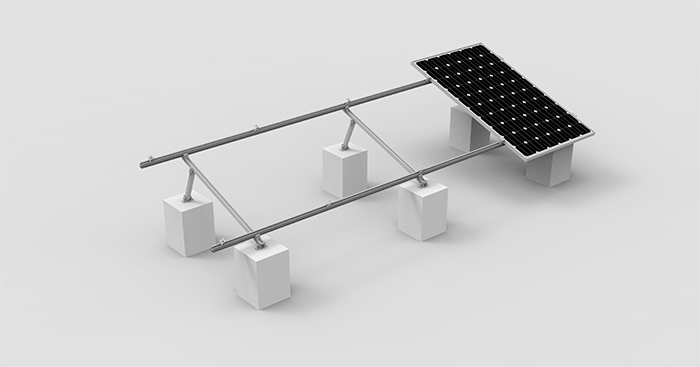

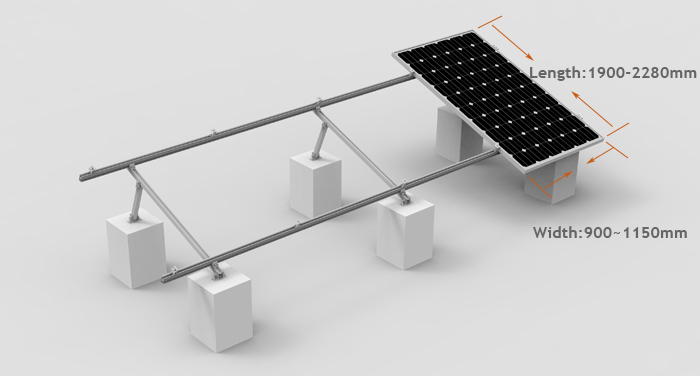

Workable for most modules

Full consider the the solar module size for most PV modules, it's suitable for most solar modules installation in the market

Make sure the max yield of system, any lengths of connector can be made for different layouts

Highly Pre-assembled

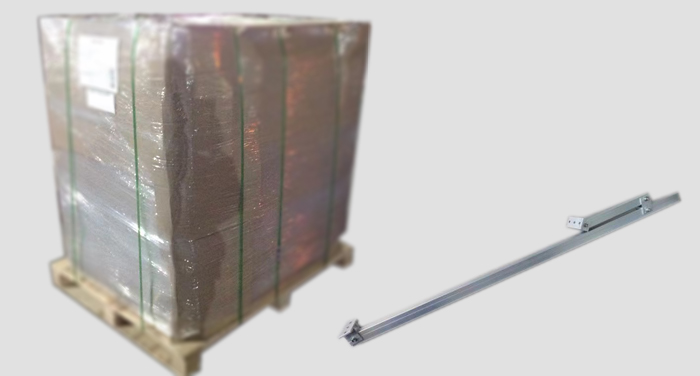

The triangular legs are fully-preassembled, and packed on pallets, easy to pick up it

Easy transporation and fast site installation with less labor cost

Customized Size Workable

It's flexible customized the Triangular Mount System upon the inclination and the solar module size

The customized rail length upon arrays length is avaliable

Components

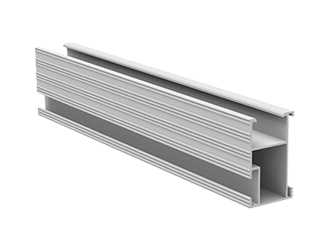

T-Rail

Universal for pitch roof and flat roof solar installation

Customized length available

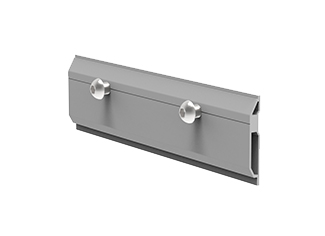

Rail Splice

For connecting rail, double support

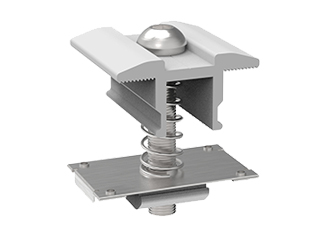

Mid Clamp

Universal for 30-35mm thickness modules

Self-standing,easy installation

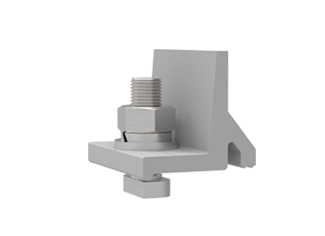

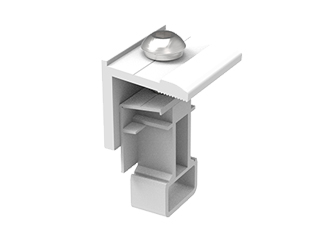

End Clamp

Universal for 30-35mm thickness modules

Self-standing,easy installation

Rail nut kits

Easy compatible with rail system

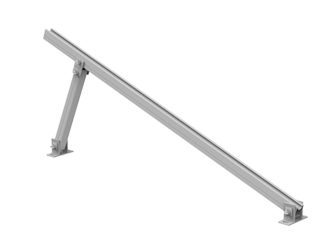

APAT leg

Easy to adjust the tilt angle: 10-15,15-30,30-45 degree

Highly pre-assembled for fast site installation

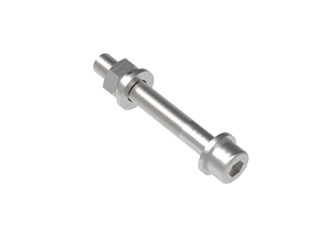

Expand bolt

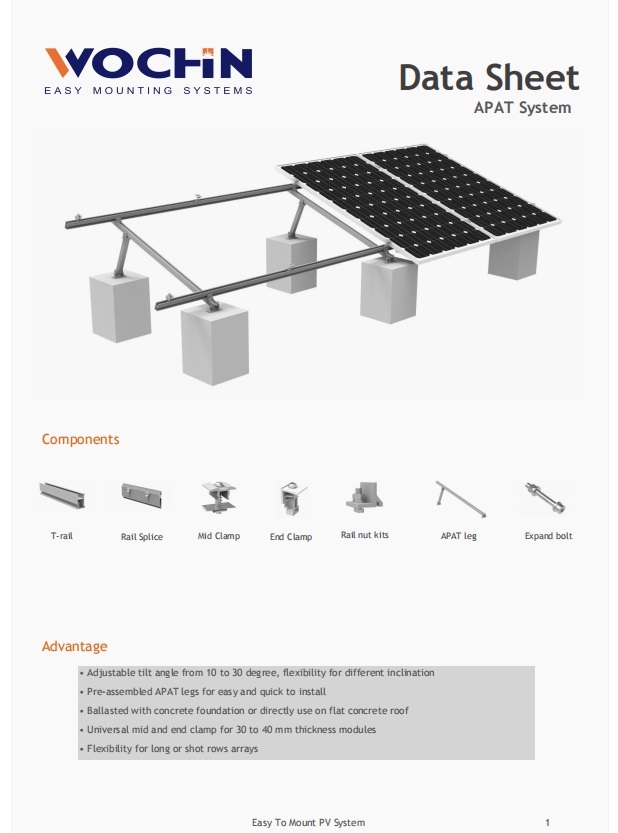

Technical Data

Product name	ATV Mount System
Application	Flat concrete roof and small ground
Inclination	Standared or customized
Material	Aluminum 6005 T5
Finish	Anodized clear, average 12um
PV module	Framed
Module size	Small and Big modules
Module orientation	Landscape
Module direction	South , North
Design wind loading	Up to 60m/s
Design snow loading	Up to 1 metre
Roof height	Up to 20 metre
Design Standard	EN1991, AS1170,UL1703,JIS C 8955:2011,CE,TUV
