    Steel Car Park Mount System

  • Steel Car Park Mount System

    Steel Car Park Mount System

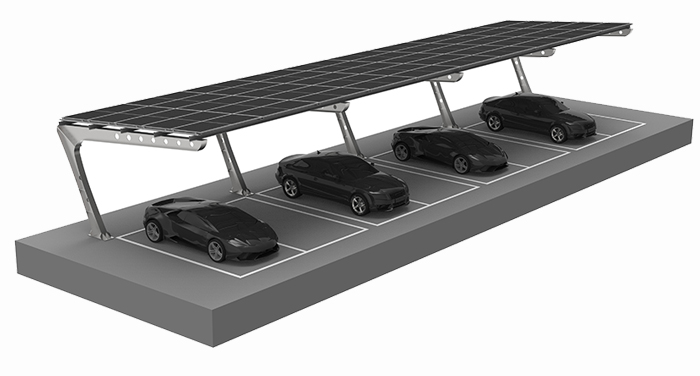

       WOCHN Steel Carport Mount Systems is available for commercial and residential users to install PV on Carpark. Use two sink rails for waterproof. Installation is simple with just a few structural components and no drilling, welding or heavy machinery required. Different arrangement directions and inclinations can be provided according to the project site, providing different options for single-sided and double-sided parking. Made of high-strength carbon steel material with excellent weather resistance and corrosion resistance.

Features

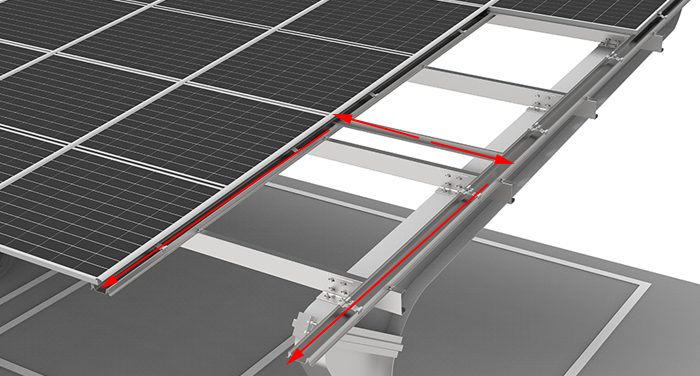

Water-proof

Water-proof

With 2 directions conduct water rail , all water flow into conduct rail, and flow out in bottom side

Portrait conduct water rail

Landscape conduct water rail

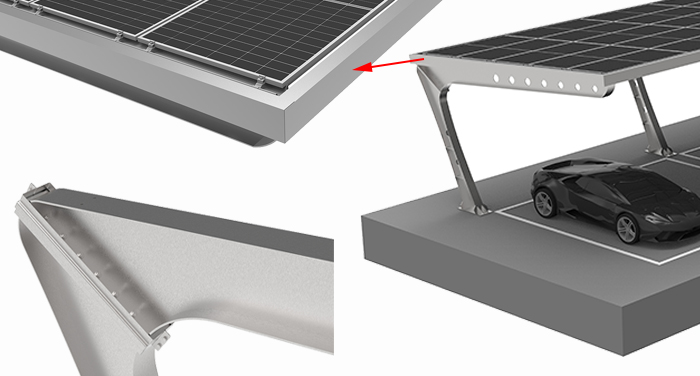

Beauty and Strong

Beauty and Strong

The unique edge design achieves the system beauty and protects the edges of the carport from damage

Ensure the structural integrity of the carport and extend its service life

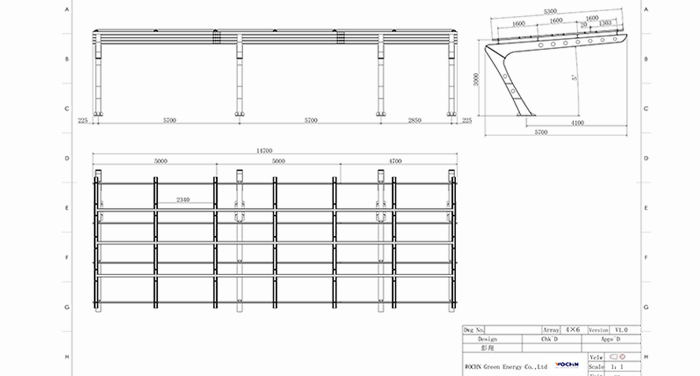

Customized design

Customized design

WOCHN design installation solutions for single-sided parking and double-side d parking

Provide different solutions accurately according to needs

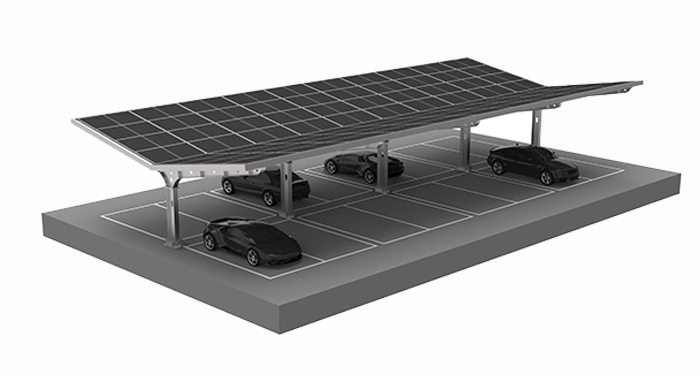

Universal for residental and commercial

Universal for residental and commercial

Standard design: single-sided and double-sided parking

Customzied multiple parking space

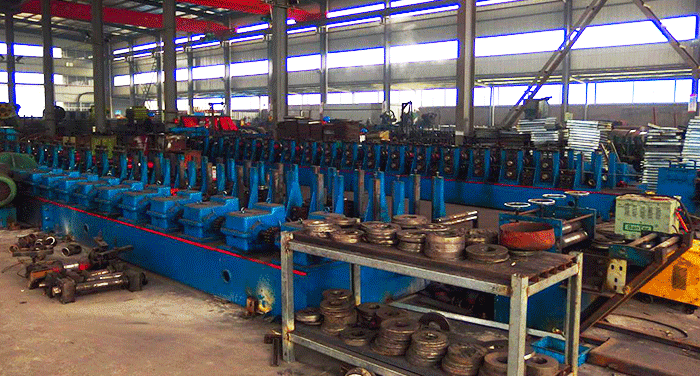

Professional production process

Professional production process

Auto-drilling machine to ensure fast cutting and drilling

Professional assemble team and package team

Components

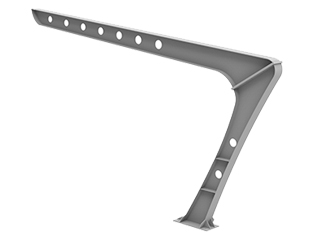

Single-sided Beam

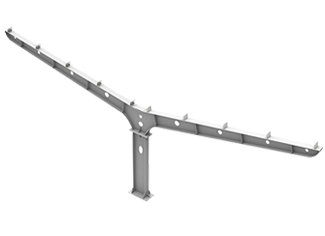

Double-sided Beam

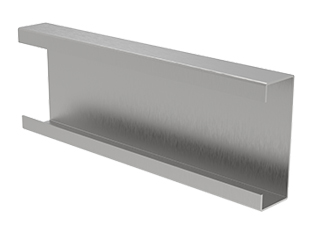

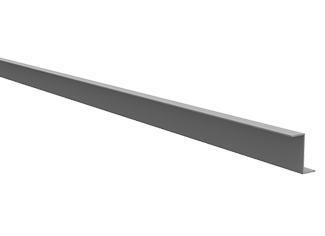

Z-type Steel

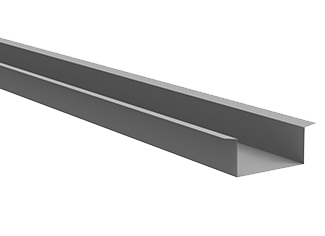

Top-empty Sink Rail

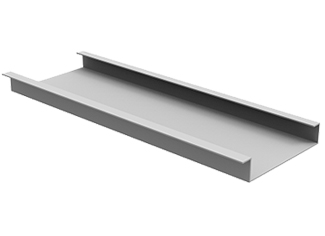

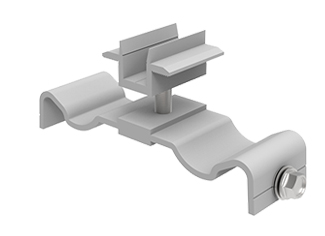

Horizontal Sink Kit

Top-empty Sink Rail

Single-sided Beam

Single-sided Beam

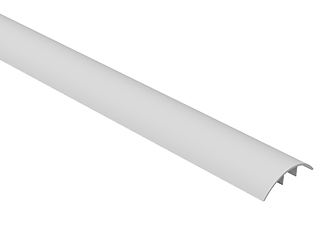

Cap

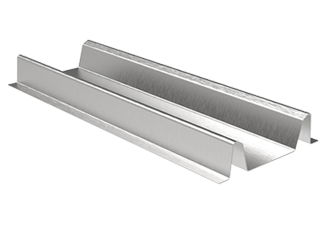

Top-empty Sink Rail

Horizontal Sink Kit

Vertical Sink Rail Fix Kit

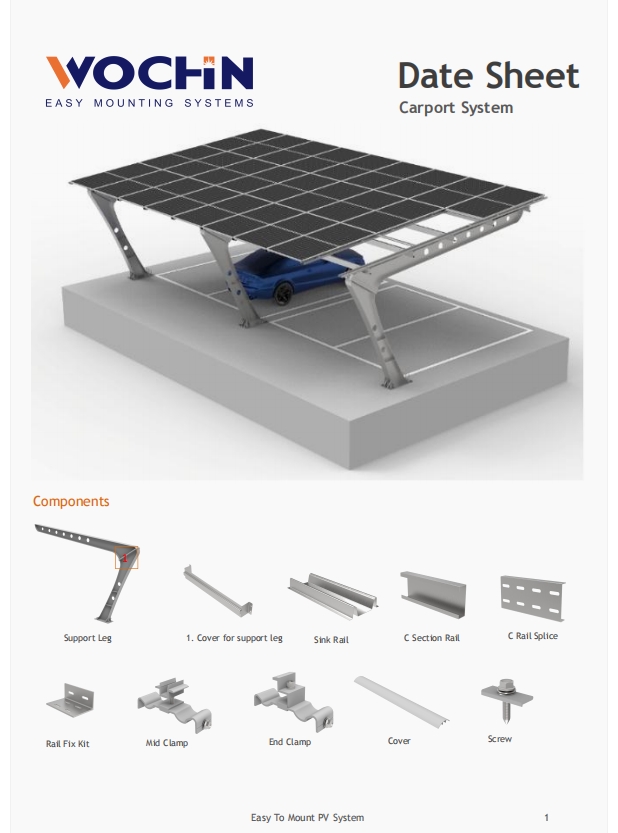

Technical Data

Product nameSteel Car Park Mount System
ApplicationGround, residental and commercial
InclinationStandared or customized
MaterialCarbon steel
FinishAnodized clear, average 12um
PV moduleFramed or unframed
Module sizeSmall and Big modules
Module orientationLandscape
Module directionSouth , North
Design wind loadingUp to 60m/s
Design snow loadingUp to 1 metre
Roof heightUp to 20 metre
Design StandardEN1991, AS1170,UL1703,JIS C 8955:2011,CE,TUV
