Waterproof car park for pv installation

Features Components Technical Data Downloads

WOCHN AWC Car Park Mount System is available for residential and commercial users to install PV on Carpark. Use two conduct water rail for waterproof. Aluminium design light-weight. Installation is simple with only a few structural components and no drilling, welding, or heavy machinery required. A good basis for getting started with e-mobility. Standard design for 2/4 parking sapce And also provide customized solutions depending on customers' requirement.

Features

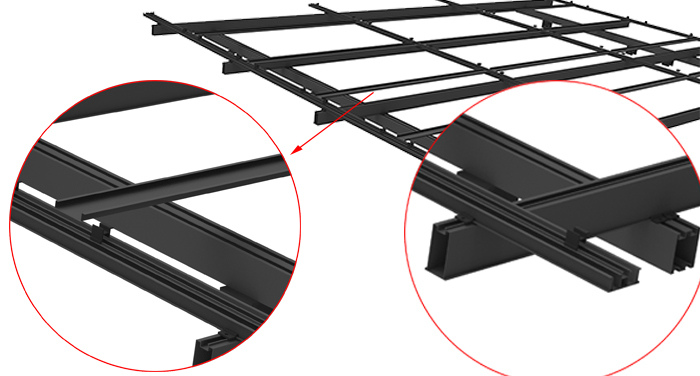

Water-proof

With 2 directions conduct water rail , all water flow into conduct rail, and flow out in bottom side

Portrait conduct water rail

Landscape conduct water rail

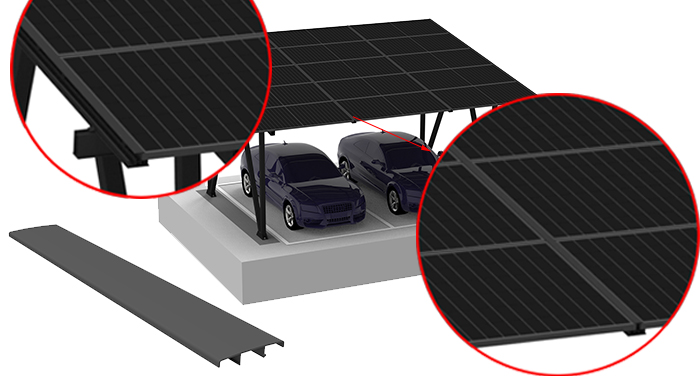

Beauty and Strong

Cover rail for clamps, to prevent water between each panel gap and achieve the system beauty

All support kits are made by big extruded aluminium profiles, ensure space between two pole legs maximium come to 6m

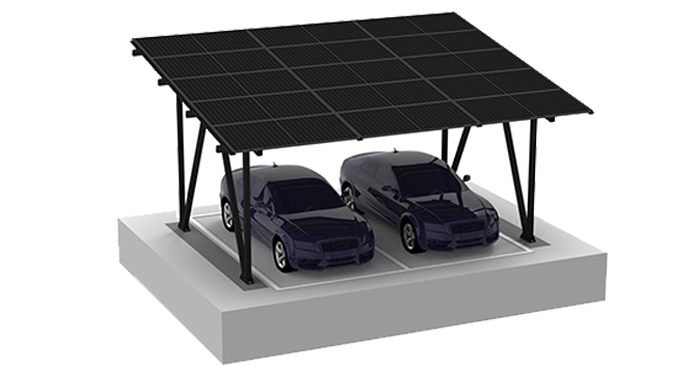

Universal for residental and commercial

Standard design: 2/4 parking space, or customzied multiple parking space

Black and silver all workable

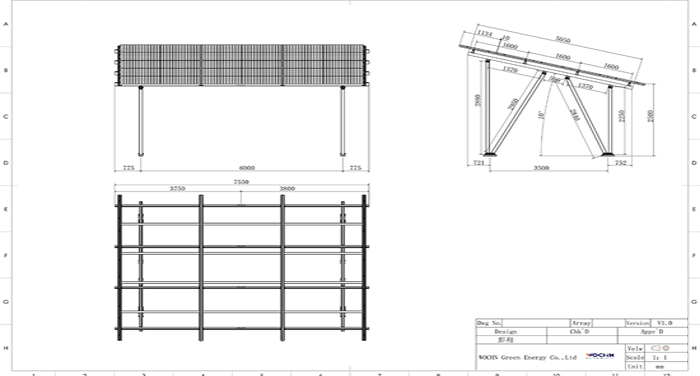

Standard or customized design

WOCHN design the standard mounting solution for 2 cars and 4 cars spacing

Customized also available for big commercial car parking

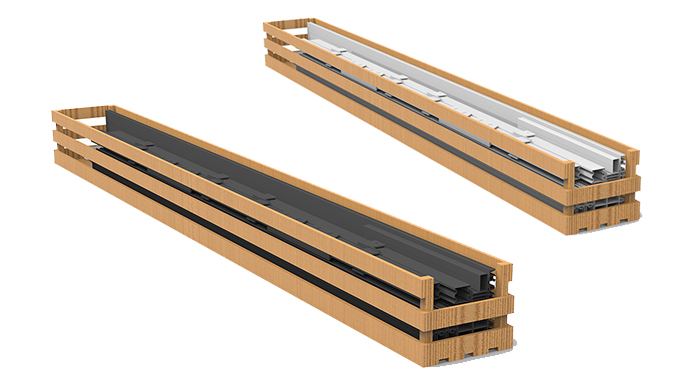

Easy to distribute

Two cars solar mounting in one carton or 4 cars solar mounting in one carton

Easy to distribute to end clients and protect the mounting systems saftety.

Components

WQ-J28-B

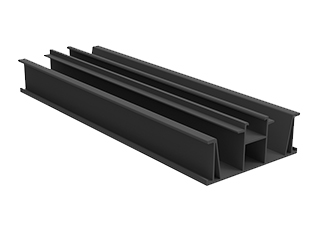

Black vertical Sink Rail, to conduct the water

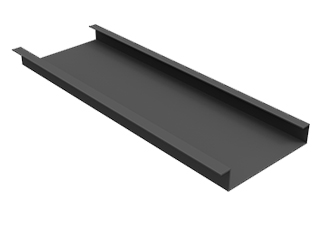

WQ-J525-B

Black horizontal Sink Kit, to conduct the water

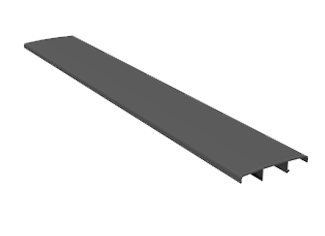

WQ-J524-B

Black J524 cap, to cover the clamp，to waterproof between each panel gap

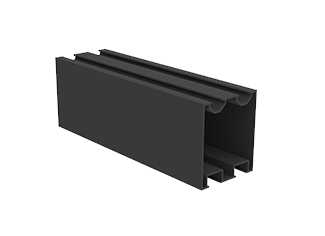

WQ-J27-B

Black H105 Beam

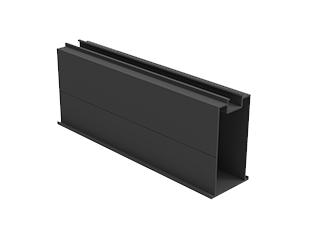

WQ-GTR26-B

Black 26# TR Rail, corss rail on Beam

WQ-J264-B

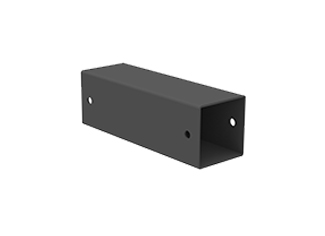

Black J264 Tube, to support the Beam

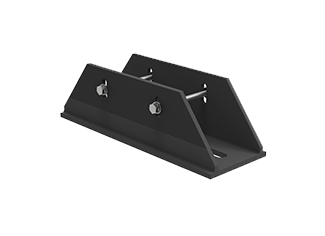

WQ-BK177-B-300

Black J177 Base Kit, base to support the AWC leg

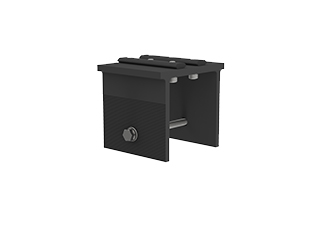

WQ-JK177-B-120

Black J177 Transfer Kit ,Pre-assembled, to connect the beam and tube

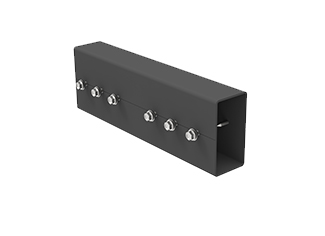

WQ-GTR26-RSK-B

Black 26# Rail Splice, cross rail splice

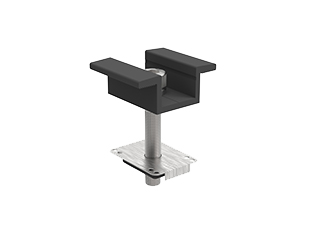

WQ-TRM-GL-3035-B

Black TR Landscape Mid Clamp, suitable 30-35mm module

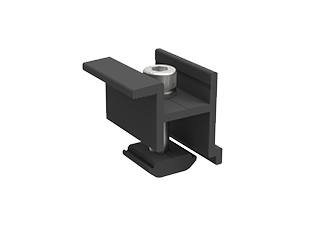

WQ-TRE-GL-35-B

Black TR Landscape End Clamp 35，for 35mm module to use

WQ-GTR-RFK-B

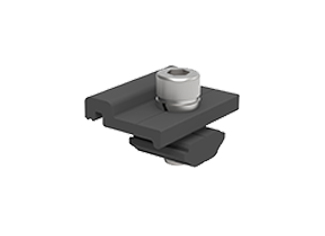

Black Ground Rail fix kit, fix the cross rail to the beam

Technical Data

Product name	AWC Car Park Mount System
Application	Ground, residental and commercial
Inclination	Standared or customized
Material	Aluminum 6005-T5
Finish	Anodized clear, average 12um
PV module	Framed or unframed
Module size	Small and Big modules
Module orientation	Landscape
Module direction	South , North
Design wind loading	Up to 60m/s
Design snow loading	Up to 1 metre
Roof height	Up to 20 metre
Design Standard	EN1991, AS1170,UL1703,JIS C 8955:2011,CE,TUV

Downloads

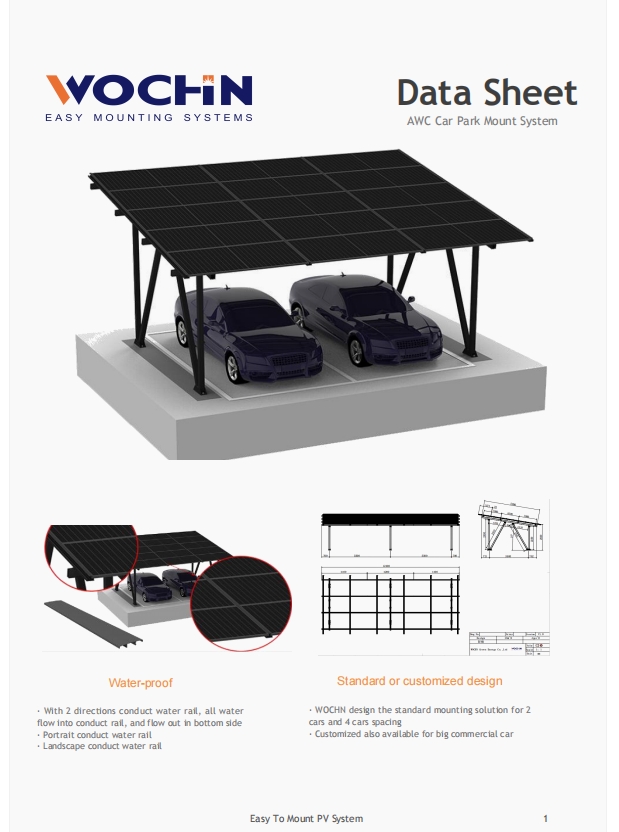

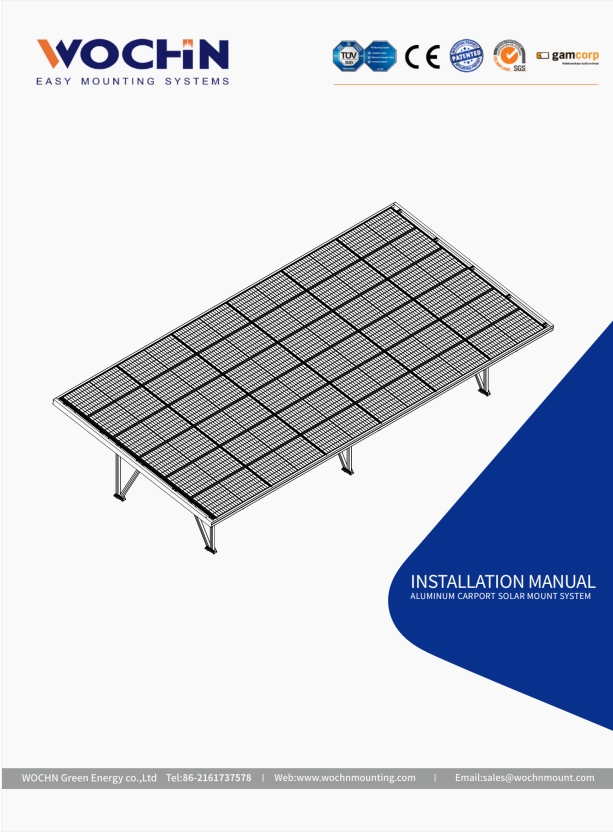

WOCHN AWC Car Park Mount Data Sheet
