export balcony solar bracket system

Features Technical Data

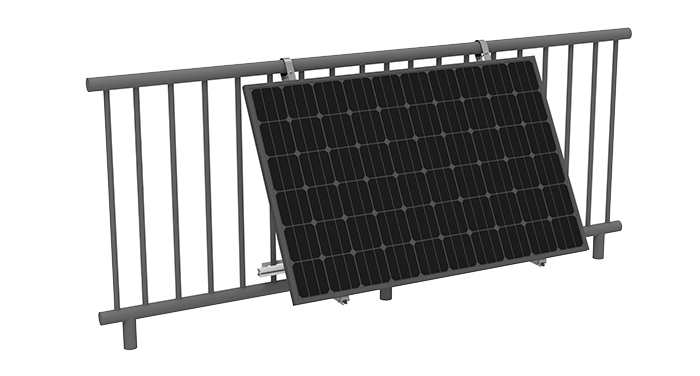

WOCHN Balcony Solar Bracket System is specially used to install panels on the balcony railings, which can easily build a small household photovoltaic power station on the balcony. The ingenious design of its adjusting leg allows it to flexibly adjust the inclination angle of the panel according to the installation site to achieve the best power generation efficiency. Aluminum design, durable and low corrosion. Required components for installation are few and easy to stock. Because all components are pre-assembled, installers save time and reduce labor costs. Optimized structural design and material selection ensure the strength and stability of the system in various climate environments.

Features

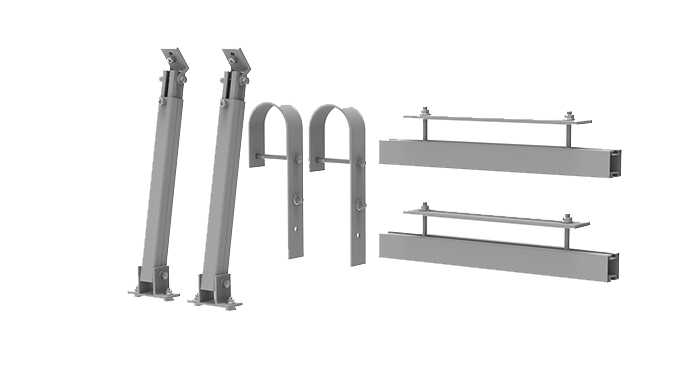

Easy kits for installing 1 panel

All components are pre-installed, easy and fast installation

2 adjustable legs, 2 hooks, 2 balcony fixing kits

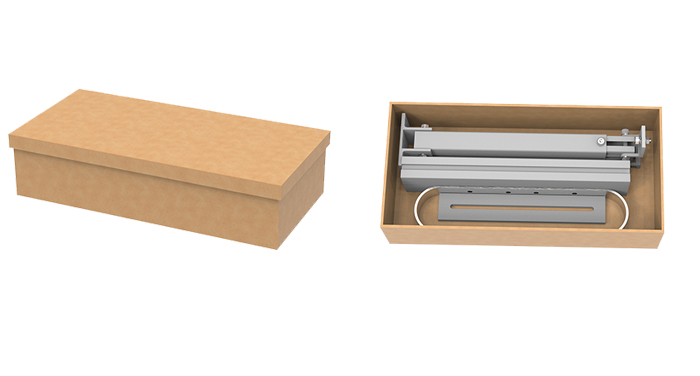

Easy to sale

All components pre-assembled, reduce DlY installation time

All components packed in 1 carton, easy to handle and sale for 1 panel installing

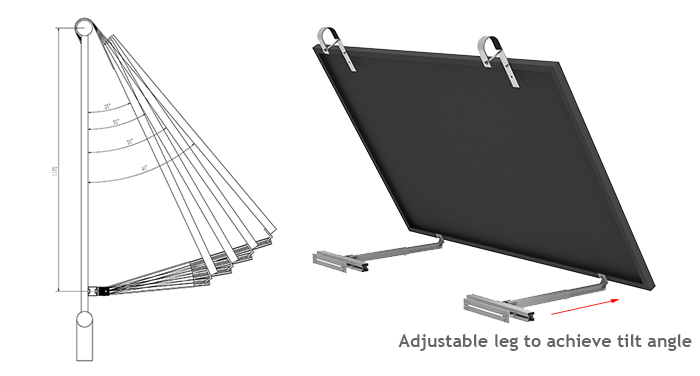

Easy to adjust from 25 deg to 40 deg

Easy to achieve the tilt angle required

Adjustable leg ensure suitable tilt angle to obtain maximum power generation

Works for 900mm to 1150mm width solar modules

Works for most balcony

Components

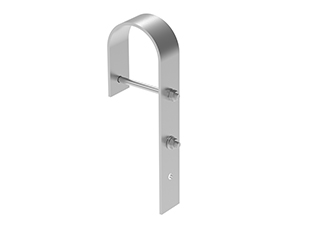

WQ-SH-81

Balcony Mount Hook 81#

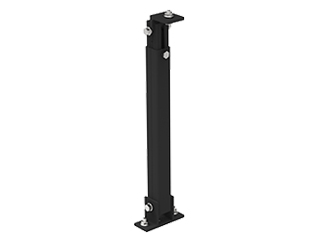

WQ-BK-RL-340-B

Black Adjustable Rear Leg Balcony Kit 340

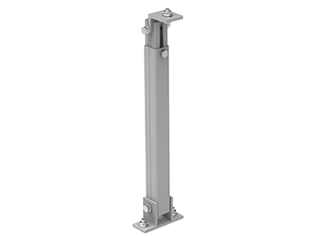

WQ-BK-RL-340-S

Silver Adjustable Rear Leg Balcony Kit 340

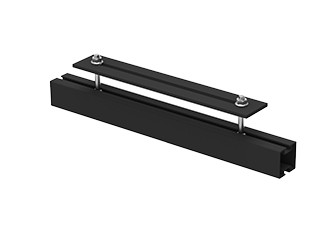

WQ-BBS-B

Black Back Balcony Support Kit

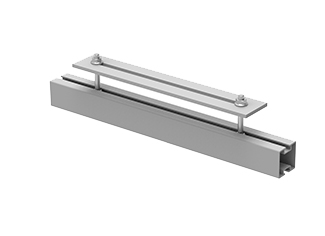

WQ-BBS-S

Silver Back Balcony Support Kit

Technical Data

Product name	Balcony Solar Bracket System
Application	Balcony
Inclination	Standared or customized
Material	Aluminum 6005-T5
Finish	Anodized clear, average 12um
PV module	Framed or unframed
Module size	Small and Big modules
Module orientation	Landscape
Module direction	South , North
Design wind loading	Up to 60m/s
Design snow loading	Up to 1 metre
Roof height	Up to 20 metre
Design Standard	EN1991, AS1170,UL1703,JIS C 8955:2011,CE,TUV
